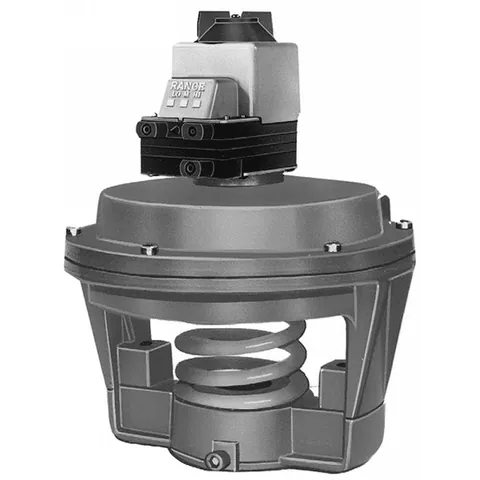

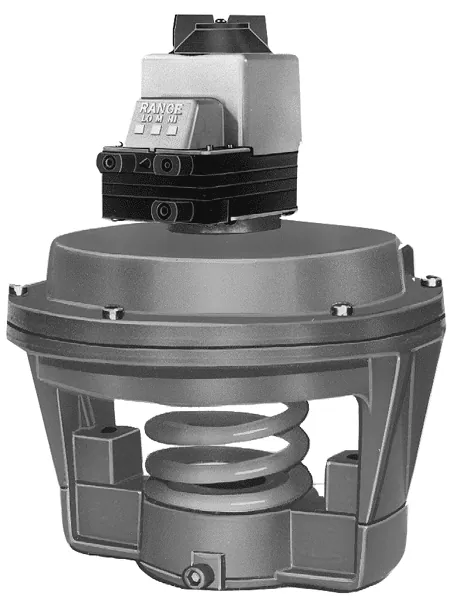

Honeywell MP953E1400/U
Pneumatic Actuators, 13 IN ACT-ASSEMBLY
Product Description
The Pneumatic Actuators, 13 IN ACT-ASSEMBLY, are specifically engineered for controlling valves and dampers within HVAC applications. This actuator operates within a temperature range of 0 °F to 140 °F (-18 °C to 60 °C) and supports a maximum operating humidity of 95% non-condensing. With a stroke length of 1.5 inches (38 mm), it is capable of delivering high stem force, ensuring effective operation.
Designed for versatility, this actuator features a pneumatic air connection and is compatible with valves ranging from 4 to 6 inches, specifically models V5011, V5013, and VGF. Its spring range varies from 4 to 11 psi (28 to 76 kPa), and it can function independently or in sequence with other actuators, providing flexibility in various installations.
This assembly includes a stem extension assembly (part number 312466-605), enhancing its adaptability for different setups. The actuator maintains optimal performance even under varying pressure conditions, with a maximum operating pressure of 25 psi (172 kPa) and a minimum of 4 psi (28 kPa).
Need more information?
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Specifications
- Brand
- Honeywell
- Spring Return
- Yes
- Maximum Operating Ambient Temperature
- 140 °F ; 60 °C
- Minimum Operating Ambient Temperature
- 0 °F ; -18 °C
- Includes
- 312466-605- Stem extension assembly
- Application
- HVAC
- Maximum Operating Humidity
- 95 % non-condensing
Documents
Data Sheet
Datasheet for Honeywell MP953E1400/U, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
