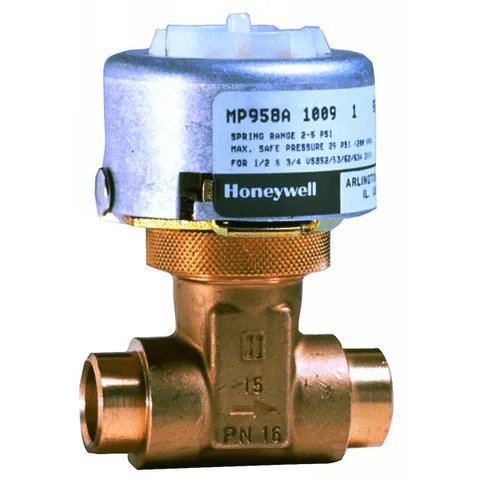

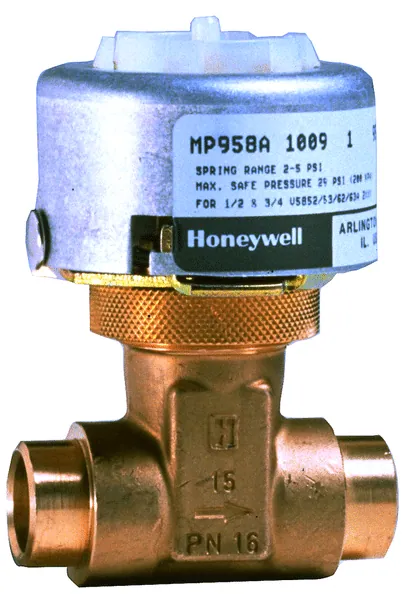

Honeywell MP958A1009/U

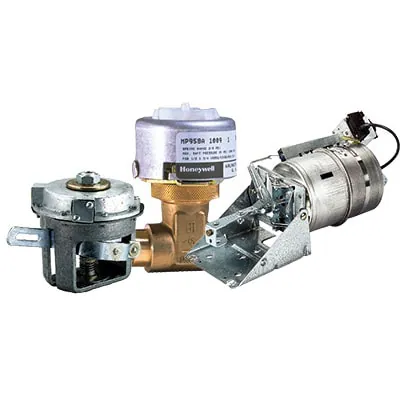

Pneumatic actuators facilitate precise control of valves and dampers within HVAC systems. These actuators are equipped to function independently or in coordination with other actuators, offering versatility in application. A variety of positioner and spring ranges are available, enabling compatibility with differing operational requirements.

The actuator features a spring return mechanism and operates under a maximum pressure of 25 psi (172 kPa), with a minimum pressure threshold of 2 psi (14 kPa). Its design includes an overall diameter of 2.25 inches (57 mm) and a height of 3.1875 inches (81 mm). The actuator employs a pneumatic air connection for efficient operation and is characterized by linear motion with a low stem force.

Notably, this actuator is compatible with V58 valves and is specified for a spring range of 2 to 5 psi (14 to 35 kPa). This allows it to accommodate a wide spectrum of valve and damper sizes, making it a suitable choice for various HVAC applications.
