Neutrik NBNC75BTU11

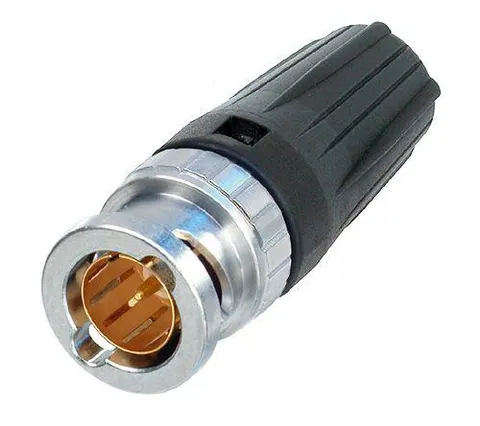

The BNC Cable Connector 75 Ω is designed for HD applications, offering a true 75 Ω impedance that ensures optimal signal integrity. The patented rearTWIST boot allows for easy access in high-density environments and provides color coding for better organization. This connector is compatible with a range of cables including Belden 1694A (ANH), Belden 4694R, and Canare L-4.5CHD.

Operating within a temperature range of -30 °C to +85 °C, this connector complies with IEC 60803 and IEC 60352-2 standards for contact crimpability. Its mechanical specifications include a cable outer diameter of 7.3 mm and a cable retention strength exceeding 30 N. The crimp sizes are 1.6 mm for the pin and 7.36 mm for the shield, ensuring reliable connections.

In terms of electrical performance, the contact resistance is ≤ 3 mΩ for the inner contact and ≤ 2 mΩ for the outer contact. The dielectric strength reaches 1.5 kVdc, while the insulation resistance exceeds 5 GΩ. Additionally, this connector exhibits a low VSWR of ≤1.050 for frequencies up to 1 GHz, ensuring minimal signal loss.

Constructed with high-quality materials, the contacts are made of brass with a gold plating of 0.2 µm, while the shell is also brass, finished with Optalloy®. This connector is built for durability, rated for over 1000 mating cycles.
