Phoenix Contact 1424671
Data Connector SACC-M12MR-5PL SH DN
Product Description

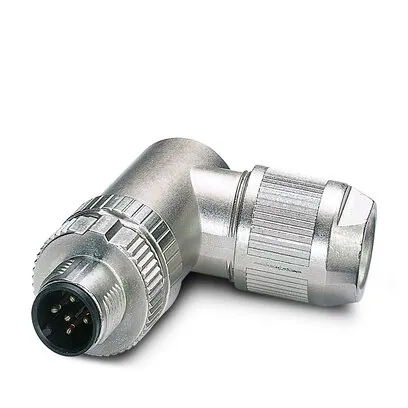

The SACC-M12MR-5PL SH DN is a specialized data connector that supports CANopen® and DeviceNet™ protocols. It features a 5-position configuration and is shielded for reliable signal integrity. The connector is designed with an angled M12 plug and employs a push-lock spring connection method for secure attachment.
The knurl is constructed from zinc die-cast material, which is nickel-plated for enhanced durability. With an external cable diameter ranging from 4 mm to 8 mm, the connector accommodates various cable sizes. The assembly allows for a 45° rotation of the connector pin assignment relative to the cable outlet, providing flexibility in installation.
Key specifications include a nominal voltage of 48 V AC and a nominal current rating of 4 A, which is reduced to 2 A when utilizing 0.14 mm² conductors. The connector is designed to operate within an ambient temperature range of -40 °C to 85 °C and meets IP65 for protection against dust and water. It also complies with fire protection standards for rail vehicles as per DIN EN 45545-2.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Phoenix Contact
- Knurl Material
- Zinc die-cast
- Item number
- 1424671
- Packing unit
- 1 pc
- Minimum order quantity
- 1 pc
- Product key
- AF2CFD
- Assembly note
- The connector pin assignment can be rotated 45° to the cable outlet
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Phoenix Contact 1424671, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
