Phoenix Contact 1436974

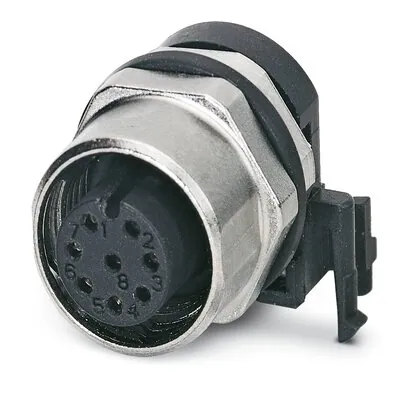

Device Connector, 8-Pin M12 SPEEDCON, Rear Mounting
Product Description
The SACC-DSIV-FS-8CON-L90 SCO is an 8-position flush-type female connector, specifically tailored for sensor and actuator applications. This connector employs M12 SPEEDCON A-coding and is designed for rear mounting with a screw mechanism, utilizing an M12 thread.
Manufactured in Germany, this device connector features anti-rotation protection and a straight solder connection method. Its housing is composed of GD-Zn with a nickel surface treatment, while the insulating body is made from PA 6.6. The connector's contacts are crafted from copper alloy with a gold surface finish, ensuring low contact resistance of ≤ 3 mΩ and high insulation resistance of ≥ 100 MΩ.
Rated for a nominal voltage of 60 V and a nominal current of 4 A, the connector supports THR and wave soldering connection methods. It has an angled cable outlet and a locking mechanism based on the SPEEDCON design, providing a secure and reliable connection. The device is also IP67 rated, ensuring protection against dust and water ingress, and is operable within a temperature range of -25 °C to 85 °C.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Phoenix Contact
- Item number
- 1436974
- Packing unit
- 10 pc
- Minimum order quantity
- 10 pc
- Product key
- ABQEHI
- Order information:
- Lock nut is included in the scope of delivery
- Mounting type
- Rear mounting (M12 x 1, with flat nut)
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Phoenix Contact 1436974, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
