Phoenix Contact 1438037

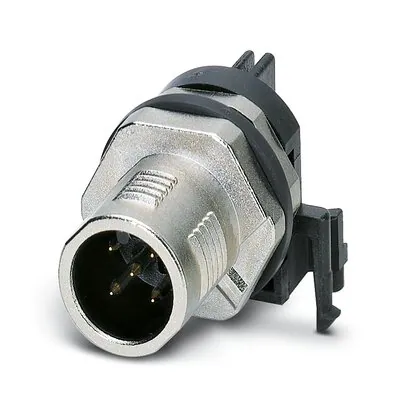

The SACC-DSIV-MS-5CON-L90 SH SCO is a rear-mounted device connector specifically designed for sensor and actuator applications. It features a 5-position configuration with A-coding and is equipped with shielding to minimize interference. The connector employs M12 thread standards and offers polarity protection, ensuring reliable connections.

Constructed to meet demanding conditions, this connector has an operating temperature range of -40 °C to 85 °C for both male and female connectors. It is built with a GD-Zn housing and has a nickel-plated surface for enhanced durability. The insulating body is made from PA 6.6, while the contacts are composed of CuZn with nickel and gold plating, optimized for low contact resistance below 3 mΩ and high insulation resistance exceeding 100 MΩ.

The connector supports nominal voltages of up to 60 V and nominal currents of 4 A. It utilizes THR and wave soldering for connections, with an angled cable outlet design that facilitates installation in tight spaces. The degree of protection is rated at IP67, ensuring resistance to dust and water ingress. Compliance with IEC 61076-2-101 standards guarantees reliable performance in industrial environments. The scope of delivery includes a lock nut for secure mounting.
