Phoenix Contact 1454972

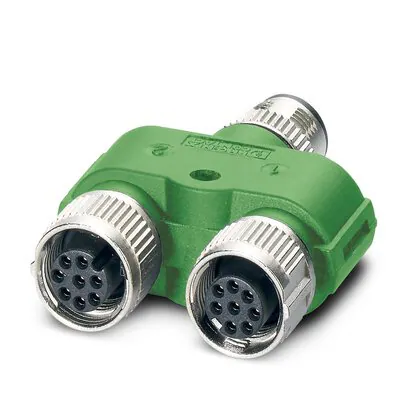

This 8-position Y distributor is equipped with a straight M12 SPEEDCON plug coded A, along with two straight M12 SPEEDCON sockets also coded A, facilitating parallel distribution of signals. The product, identified by the item number 1454972, is constructed to meet the standards set by IEC 61076-2-101.

With a compact form factor, it measures 39 mm in width, 16 mm in height, and 52.5 mm in length, making it suitable for various applications. The distributor operates within an ambient temperature range of -25 °C to 90 °C and is rated for a nominal voltage of 30 V AC and a nominal current of 2 A. It is not shielded and features a degree of protection rated at IP65, ensuring its reliability in challenging environments.

Manufactured in Poland, the device is comprised of materials such as TPU for the grip body, CuZn for contacts, and zinc die-cast for screw connections, which are nickel-plated for enhanced durability. The product is designed for at least 100 insertion/withdrawal cycles, thus ensuring longevity in frequent use. The insulation resistance is rated at ≥ 100 MΩ, and the flammability rating according to UL 94 is HB.
