Phoenix Contact 1506778

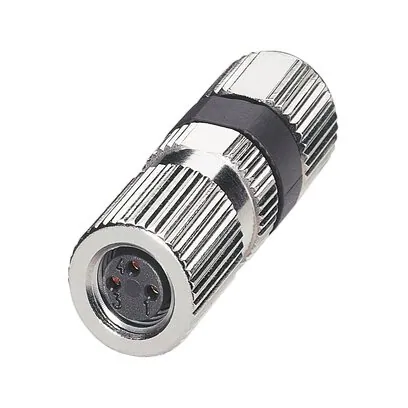

SACC-M 8FS-3PCON - Connector
Product Description
The SACC-M 8FS-3PCON is a universal connector designed for efficient connectivity in various applications. It features a straight M8 socket with three positions and A-coding, which allows for versatile usage in industrial environments.
Constructed with a knurl made of nickel-plated brass, the connector supports an external cable diameter ranging from 3 mm to 5 mm. The overall length of the connector is 33.9 mm, with a housing diameter of 12 mm. It operates efficiently within an ambient temperature range of -25 °C to 85 °C.
This connector is rated for a nominal voltage of 48 V AC and a current capacity of up to 4 A. Its design allows for at least 100 insertion and withdrawal cycles, ensuring reliable performance. The degree of protection is rated at IP68, making it suitable for demanding environments.
Additional specifications include an insulation resistance of ≥ 100 MΩ and a contact resistance of ≤ 3 mΩ. The connector adheres to IEC 61076-2-104 standards, ensuring compatibility and reliability in industrial applications. Note: Observance of permissible bending radii during cable routing is necessary to maintain protection integrity.
Need more information?
Offer details
- Offer from:
Trusted supplier — Poland, member since 2021, 500+ employees - Availability:
- 1 pc.Updated at: 19-09-2026In-Stock
- Warranty:
- Not specified
- Condition:
- New Surplus
Specifications
- Brand
- Phoenix Contact
- Knurl Material
- Nickel-plated brass
- Item number
- 1506778
- Packing unit
- 1 pc
- Minimum order quantity
- 1 pc
- Product key
- AF2BGA
- Assembly note
- NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.
