Phoenix Contact 1583526

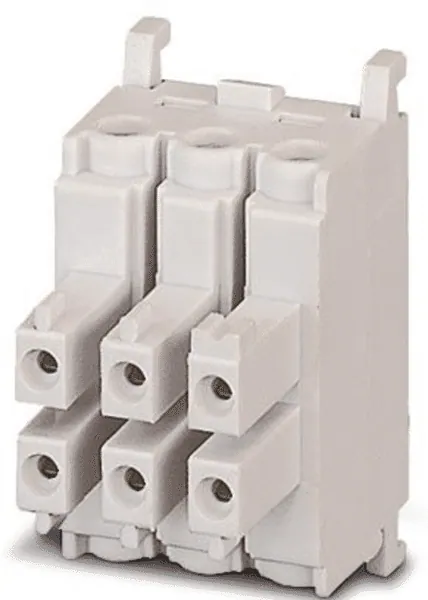

Contact insert VC-TFS 6-PE
Product Description
The VC-TFS 6-PE contact insert is designed for use within the VARIOCON series. It is constructed from polyamide and is available in a light grey color. This insert supports a range of six positions and allows for conductor cross sections between 0.14 mm² and 1.5 mm². The rated voltage is 250 V, while the rated current is 10 A. Connections are made via a screw connection, and the type of contact is a socket.
It is essential to note that connectors should only be connected or disconnected when no load is present to prevent damage. The insert measures 15 mm in width, 27.5 mm in height, and 21.8 mm in length, with a tightening torque range of 0.22 to 0.25 Nm. This product is suitable for ambient temperatures ranging from -40 °C to 100 °C, ensuring functionality across a variety of environments.
Need more information?
Offer details
- Offer from:
Trusted supplier — Czechia, member since 2023, 100–499 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Phoenix Contact
- Range Of Articles
- VARIOCON
- Housing Material
- Polyamide
- Color
- Light Grey
- Number Of Positions
- 6
- Rated Voltage
- 250
- Rated Current
- 10 A
