Phoenix Contact 1619968

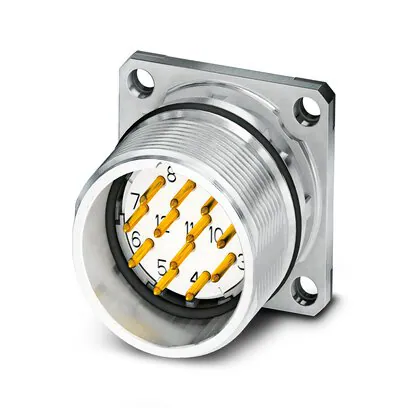

CA-12P1N122S00 - M23 Device Connector Front Mounting
Product Description
The M23 device connector front mounting (CA-12P1N122S00) is engineered for applications requiring a reliable connection. This connector includes a straight design and is shielded, making it suitable for standard and SPEEDCON interlock systems. It features a total of 12 pin contacts, which are solder-based, ensuring secure electrical connections.
With a flange dimension of 25 mm x 25 mm and a flat gasket, this connector is built for durability. The connector's construction includes a housing made from GD-Zn material, providing a degree of protection rated at IP67 when plugged in. It operates effectively within an ambient temperature range of -40 °C to 125 °C. The connector also complies with RoHS II regulations without Exemption 6c, ensuring lead content is below 0.1%.
Notable specifications include a rated voltage of 48 V AC and a rated current of 8 A for the pin contacts. The connector supports a maximum litz wire cross-section of 1 mm² for optimal performance. The insertion and withdrawal cycles are rated for 100, ensuring longevity in various industrial applications.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Phoenix Contact
- Shielded
- Yes
- Type Of Contact
- Pin
- Coding
- N Alternative product in accordance with RoHS II without Exemption 6c (Pb <0.1%) 1243925
- Item number
- 1619968
- Packing unit
- 1 pc
- Minimum order quantity
- 1 pc
