Phoenix Contact 1619970

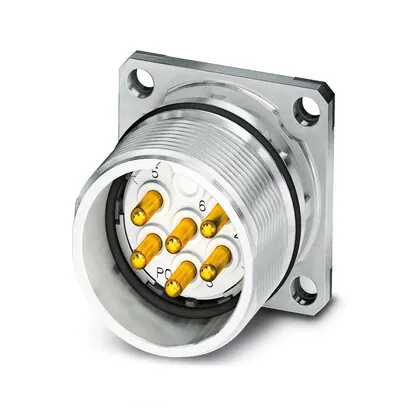

The M23 front mounting device connector is designed to facilitate reliable signal connections with a total of 9 contact positions (8 pins and 1 larger pin). It features a flange with dimensions of 25 mm x 25 mm and is constructed with a GD-Zn housing material, ensuring durability in various environments. The device is shielded to minimize electromagnetic interference and is equipped for standard and SPEEDCON interlocks.

The connector allows for a crimp connection method, with a rated current of 20 A for the larger pin and 8 A for the remaining pins. Its operational temperature range spans from -40 °C to 125 °C, making it suitable for a wide array of applications. The connector meets protection class IP67 when plugged in, providing resistance against dust and water ingress. The included flat gasket further enhances its sealing capabilities.

Technical specifications include a rated voltage of 48 V AC and a rated surge voltage of 1.5 kV, which are critical for ensuring safe and efficient operation in industrial settings. The device connector is sourced from Germany and adheres to strict quality standards.
