Phoenix Contact 1654785

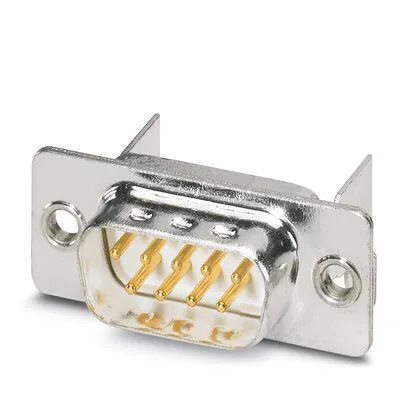

D-SUB contact insert, shell size 1 with nine signal contacts
Product Description
This D-SUB contact insert is designed for PCB assembly and features a shell size 1 with nine signal contacts. It utilizes an angled configuration and facilitates mounting via a 2.5 mm hole along with a solder metal plate. The unit is compatible with panel mounting frame VS-09-...
Constructed from a combination of steel and tin-plated materials, the housing offers durability with a flammability rating of V0 according to UL 94 standards. The rated voltage is up to 400 V in accordance with IEC 61076-2-101, and it supports a rated current of 5 A at 20 °C. The contact surfaces are composed of gold over nickel, ensuring reliable connectivity. With a degree of protection rated at IP20, this component operates effectively within an ambient temperature range of -55 °C to 125 °C.
Additional specifications include an insertion/withdrawal cycle longevity of at least 200 cycles and an insertion force per signal contact not exceeding 3.40 N. This product is manufactured in Germany and adheres to relevant international standards.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Phoenix Contact
- Item number
- 1654785
- Packing unit
- 10 pc
- Minimum order quantity
- 10 pc
- Product key
- ABNCAA
- Type
- D-SUB
- Number of positions
- 9
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Phoenix Contact 1654785, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
