Phoenix Contact 1831388

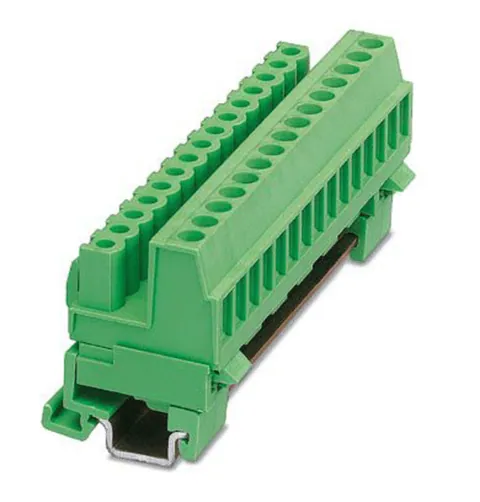

MSTBVK 2,5/ 9-ST-5,08 - DIN Rail Connector
Product Description
The MSTBVK 2,5/ 9-ST-5,08 DIN rail connector is designed for secure connections in industrial applications. With a nominal cross section of 2.5 mm² and rated current of 12 A, it provides reliable performance. The connector supports a rated voltage of 320 V and is constructed with a tin-plated contact surface, ensuring optimal conductivity.
Featuring 9 potentials arranged in a single row, this connector utilizes a 5.08 mm pitch and employs a screw connection method with a tension sleeve, utilizing an L Slotted screw head form for easy installation on a DIN rail. The connection direction is at 0 °, and it incorporates the COMBICON MSTB 2,5 plug-in system.
The product is packaged in cardboard and is compliant with WEEE/RoHS standards, ensuring it is free from whiskers according to IEC 60068-2-82/JEDEC JESD 201. The connector is suitable for a wide range of conductor sizes, from 0.2 mm² to 2.5 mm² for both rigid and flexible conductors, making it versatile for various applications.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Phoenix Contact
- Color
- Green
- Nominal Current
- 12 A
- Contact Surface
- Tin
- Type Of Contact
- Female connector
- Number Of Potentials
- 9
- Number Of Rows
- 1
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Phoenix Contact 1831388, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
