Phoenix Contact 1832743

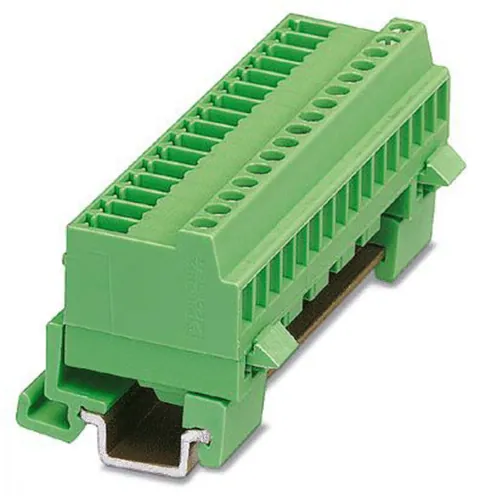

The DIN rail connector with a nominal cross section of 1.5 mm² is designed for reliable electrical connections. It supports a nominal current of 8 A and a rated voltage of 160 V (III/2), making it suitable for various industrial applications. The contact surface is tin-plated, ensuring good conductivity and corrosion resistance.

This connector features three potentials arranged in a single row, with a pitch of 3.81 mm. It employs a screw connection method with a tension sleeve, utilizing an L Slotted screw head for secure fastening. Mounting is executed on a DIN rail, facilitating straightforward installation in control cabinets.

With its COMBICON MC 1,5 plug-in system, the connector allows for easy integration into existing setups. The design includes a conductor/PCB connection direction of 0 °, and it operates without locking mechanisms. The product is compliant with relevant standards, ensuring safety and performance in demanding environments.

Specifications such as a contact resistance of 3.3 mΩ and a rated insulation voltage of 160 V (III/3) further underscore its reliability. The connector is manufactured in Poland and comes packed in cardboard, with a minimum order quantity of 50 pieces. The product range includes various configurations under MCVK 1,5/..-G, catering to diverse connection needs.
