Phoenix Contact 3070024

Name: Ground Modular Terminal Block
Brand: Phoenix Contact
SKU: 3070024

Ground Modular Terminal Block

1 / 2

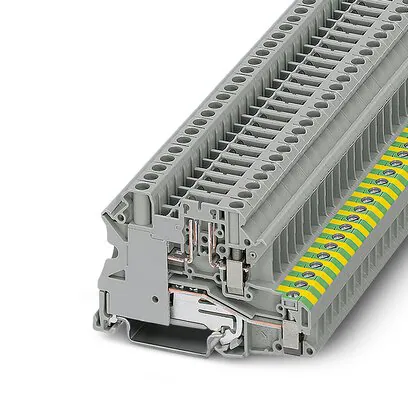

Manufacturer catalogue image

Product Description

The Ground Modular Terminal Block is designed to provide reliable electrical connections in various applications. The block's current and voltage capacity are determined by the plug used, making it versatile for different power requirements. With a nominal voltage of 500 V and a nominal current of 20 A, this terminal block can handle a wide range of electrical loads.

Connection Method: The terminal block features screw connection, ensuring secure and stable electrical connections. It also has a rated cross-section of 2.5 mm², allowing for efficient heat dissipation and reduced energy loss.

Mounting Options: The Ground Modular Terminal Block offers mounting options including NS 35/7.5 and NS 35/15, making it suitable for various installation scenarios. Its gray color adds to its aesthetic appeal while maintaining a professional look.

Need more information?

Call us at:+48 17 778 34 19

Compare offers

Payment methods:

Offer details

Offer from:: Trusted supplier — Italy, member since 2021, 10–19 employees
Availability:: On requestLead time to be confirmed
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Phoenix Contact
Nominal Current: 20 A
Connection Method: Screw connection
Rated Cross Section: 2.5 mm²
Cross Section: 0.14 mm² - 6 mm²
Mounting: NS 35/7
Color: Gray

Available Offers

(2)

	Condition	Availability	Supplier	Warranty	Action
	Condition New Factory Sealed	Availability On requestLead time to be confirmed	Supplier ItalyTrusted supplier — member since 2021, 10–19 employees	Warranty 12 months
	Condition New Factory Sealed	Availability On requestLead time to be confirmed	Supplier GermanyTrusted supplier — member since 2024	Warranty 12 months

Offer with manufacturer lead time

Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.

Documents

Data Sheet

Datasheet for Phoenix Contact 3070024, including specifications and features.

Download Data Sheet

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model

Product data updated: 19-09-2026
