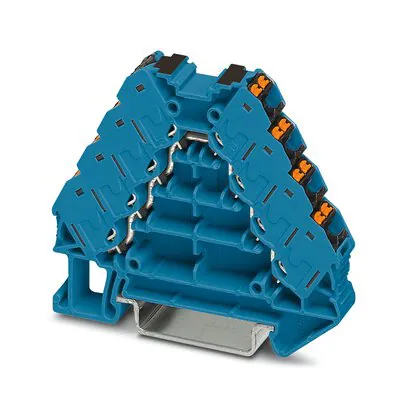

Phoenix Contact 3270126

The potential distributors are designed for a nominal voltage of 250 V and a nominal current of 17.5 A. They employ a push-in connection method, accommodating up to four levels of connections. With a rated cross-section of 1.5 mm², they support conductor cross-sections ranging from 0.14 mm² to 2.5 mm², making them versatile for various applications.

This product features a mounting configuration compatible with NS 35/7.5 and NS 35/15 rails, with a compact width of 8.3 mm, height of 64 mm, and depths of 55.5 mm and 63 mm respectively on the respective rails. It is colored blue (RAL 5015) with black connection elements, ensuring clear identification and organization within installations.

Additionally, the distributors are rated for overvoltage category III and offer a rated surge voltage of 4 kV, ensuring reliability in demanding environments. Their construction adheres to IEC 60947-7-1 standards, and they are manufactured in Poland.
