Schneider Electric
9007AO12
1 / 1
Description
Active Mature

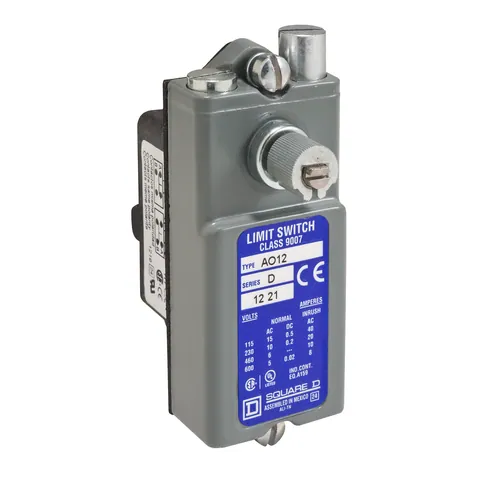

9007AW precision heavy duty limit switches are for applications that require better precision of operation. This non plug-in limit switch without a box has a rotary lever arm head. Limit switches are factory set to operate in the counterclockwise direction. It can be converted to work in the opposite direction in the field. Limit switch has a one normally open and one normally closed snap action contact. Contacts have an A600 inductive rating and 15A resistive rating. They also have 15A at 125VAC, 10A at 240VAC, 6A at 480VAC and 5A at 600VAC ratings. They also have 0.25A at 125VDC and 0.1A at 250VDC ratings. Limit switch is 3.47 inches tall, 2.28 inches width and 1.38 inches deep This open limit switch is NEMA 1 and IP20 rated. Limit switch is UL Listed and CSA certified. It supports open type mounting. The 9007 AO Heavy Duty snap switches with a plastic body and a broad selection of operator styles and contact arrangements in 10A and 15A versions. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.- Country of Origin
- MX
- Part Number
- 9007AO12
- Tariff Code
- 8536509055
- EAN
- 39122213
- UPC
- 785901807520
- UNSPSC
- 39122213
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 1 pc.In-StockUpdated at: 21-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Specifications
- Series Name
- heavy duty
- Body Type
- fixed
- Range Of Product
- 9007
- Product Specific Application
- precision
- Product Or Component Type
- limit switch
- Device Short Name
- 9007AW
Contractual warranty
- Warranty
- 18 months
Complementary
- Switch Actuation
- from left convertible to right || CCW convertible to CW
- Maximum Displacement Angle
- 30 °
- Type Of Approach
- lateral approach, 1 direction programmable
- Height
- 3.47-3.47 in
- Movement Of Operating Head
- rotary
- Mounting Mode
- open type
- Terminals Description Iso N°1
- (3-4)NO || (1-2)NC
- [Ui] Rated Insulation Voltage
- 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
- Positive Opening
- without
- Electrical Connection
- 1-2 screw-clamp terminals AWG 22...AWG 12)
- Tripping Angle
- 5 °
- Number Of Steps
- 1
- Contact Operation
- snap action
- Operator Material
- cast zinc
- [Ie] Rated Operational Current
- 5 A 600 V AC, A600 NEMA rating designation || 6 A 480 V AC, A600 NEMA rating designation || 10 A 240 V AC, A600 NEMA rating designation || 15 A 120 V AC, A600 NEMA rating designation || 0.1 A 250 V DC || 0.25 A 125 V DC
- Fixing Mode
- by the body
- Contacts Material
- silver contacts
- Maximum Actuation Speed
- 130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
- Operator Profile
- rotary head
- Body Material
- cast zinc
- [Ithe] Conventional Enclosed Thermal Current
- 15 A
- Contact Form
- Form Z
- Contacts Type And Composition
- NC-NO SPDT-DB
- Width
- 2.28 in
- Depth
- 1.38 in
- Minimum Torque For Tripping
- 2.75 lbf.in
- Material
- metal
- Net Weight
- 0.1 lb(US)
- Type Of Operator
- spring return without operating lever cast zinc
- Number Of Poles
- 1
- Repeat Accuracy
- +/- 0.002 in linear travel of cam on 1.38 in long lever arm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environment
- Ambient Air Temperature For Operation
- 0-185 °F
- Ambient Air Temperature For Storage
- 0-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250
- Protective Treatment
- epoxy powder coat
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
