Schneider Electric ATSU01N212LT
soft starter for asynchronous motor, Altistart U01, TeSys U, ATSU01, 12A, 200 to 480V, 2.2 to 5.5kW
1 / 2

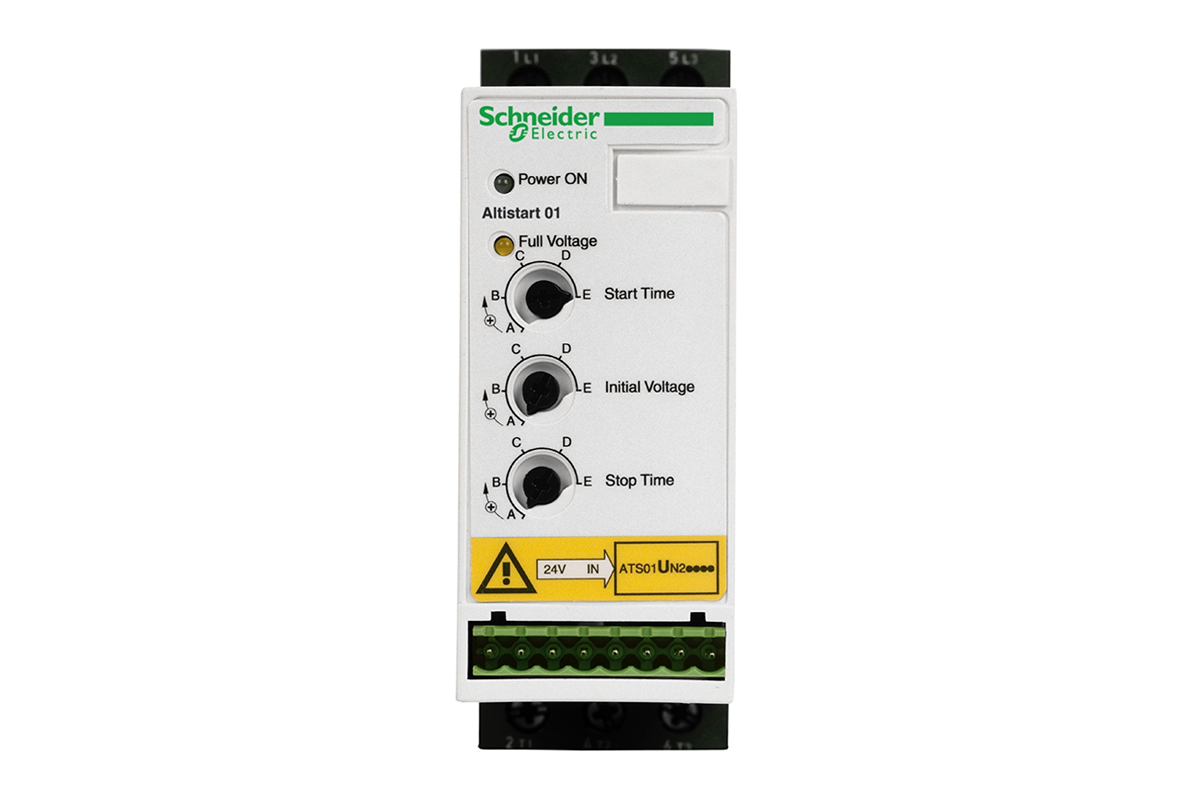

Manufacturer catalogue image
Product Description
Lifecycle Status:
The Altistart U01 is a soft start/soft stop unit for 3-phase asynchronous motors. It is designed primarily for combinations with TeSys U starter-controllers. It can be used for a motor rated power up to 3kW or 7.5hp for 3-phase (200V to 480V AC) and up to 12A rating. It is 45mm wide, this makes it one of the smallest soft starters on the market. It can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Its protection index is IP20. It weighs 0.34kg and its dimensions are, 45mm wide, 234mm high, 150mm deep. The Altistart U01 is designed for the following simple applications like conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It complies with standards IEC/EN 60947-4-2, and carries UL, CSA, C-Tick, and CCC certifications, and CE marking. It can be easily combined with a TeSys U controller by means of the power connector VW3G4104. It is easy to install on a DIN rail. Altistart 01 combines simplicity with easy cabling, fast configuration and efficiency. Reduced machine wear and minimized maintenance time will optimize operations. Together with TeSys Model U, it provides a unique motor starter solution.
Need more information?
Call us at:+48 17 778 34 19
Payment methods:
Offer details
- Offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees - Availability:
- On requestLead time: 21 days
- Warranty:
- Not specified
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- UL || CCC || C-tick || CSA
- Standards
- EN/IEC 60947-4-2
- Electromagnetic Compatibility
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity EN 50082-1 || EMC immunity level B EN 50082-2 || harmonics level 3 IEC 1000-3-2 || harmonics level 3 IEC 1000-3-4 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5 || conducted and radiated emissions level 3 IEC 61000-4-6 || immunity to conducted interference caused by radio-electrical fields level 4 IEC 61000-4-11
- Ambient Air Temperature For Operation
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Vibration Resistance
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
Available Offers
(5)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
| Condition New Surplus | Availability On requestLead time: 21 days | SupplierRomaniaTrusted supplier — member since 2023, 1–4 employees | Warranty Not specified | |
 | Condition New Surplus | Availability 1 pc. Updated at: 19-09-2026In-Stock | Supplier SwitzerlandTrusted supplier — member since 2023 | Warranty 6 months | |
 | Condition New Surplus | Availability On requestLead time: 15 days | Supplier NetherlandsTrusted supplier — member since 2021, 100–499 employees | Warranty 24 months | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier GermanyTrusted supplier — member since 2024 | Warranty Not specified | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Schneider Electric ATSU01N212LT, including specifications and features.
Download Data Sheet
CAD Models
3D CAD model and technical drawings, ready for your design software.
Download CAD Model
Product data updated: 22-08-2026
