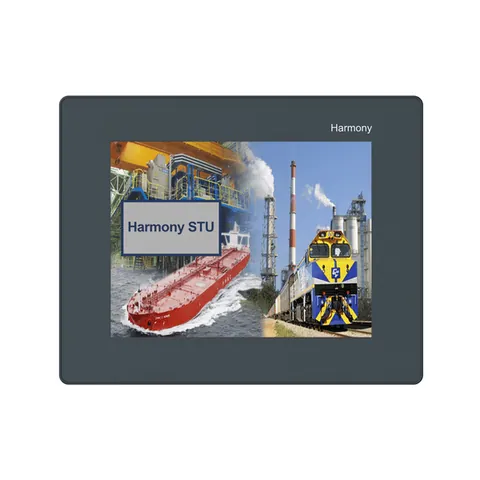

HMISTU855W

Additional Information

Part Number

HMISTU855W

UNSPSC

43211506

Tariff Code

8537109170

Country of Origin

CN

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP2101003EN

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI2101003EN

Upgradeability

Upgradeable through digital modules and upgraded components

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Number Of Pages

limited by internal memory capacity

Brightness

16 levels

Height

129.15 mm

Inrush Current

30 A

Power Consumption In W

6.8 W

Supply

external source

Display Resolution

320 x 240 pixels QVGA

Marking

CE || without Schneider logo

Processor Frequency

333 MHz

Net Weight

0.871 kg

Fixing Mode

Ø 22 mm hole

Backlight Lifespan

50000 hours

Touch Panel

analogue

Supply Voltage Limits

20.4-28.8 V

Integrated Connection Type

1 USB 2.0 type mini B || 1 USB 2.0 type A || COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s) || power supply - removable screw terminal block || 1 Ethernet - RJ45

Display Size

5.7 inch

Downloadable Protocols

third party protocols || Uni-TE || Modbus || Modbus TCP/IP

Realtime Clock

access to the PLC real-time clock

Enclosure Material

PC/PBT and PAA

Display Colour

65536 colours

Width

163 mm

Display Type

QVGA TFT colour touchscreen

Depth

56.5 mm

Character Font

ASCII || Japanese (ANK, Kanji) || Chinese (simplified Chinese) || Taiwanese (traditional Chinese) || Korean

Memory Description

application memory 16 MB || back up of data 64 kB

[Us] Rated Supply Voltage

24 V DC

Specifications

Range Of Product

Harmony STO & STU

Product Or Component Type

touch panel screen

Operating System

Harmony

Processor Name

CPU ARM9

Software Designation

Vijeo Designer

Environment

Product Certifications

cULus || C-tick || UL class 1 Div2 T4A ou T5 || Marine || UKCA

Ambient Air Temperature For Operation

0-50 °C

Resistance To Electromagnetic Fields

10 V/m IEC 61000-4-3

Standards

IEC 61000-6-2 || UL 508 || UL 1604 || IEC 61131-2 || FCC Class A

Immunity To Microbreaks

7 ms

Vibration Resistance

+/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6

Shock Resistance

15 gn 11 msIEC 60068-2-27

Ip Degree Of Protection

IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)

Ambient Air Temperature For Storage

-20-60 °C

Nema Degree Of Protection

NEMA 4X front panel indoor use)

Relative Humidity

0-85 % without condensation

Operating Altitude

<= 6561.68 ft (2000 m)
