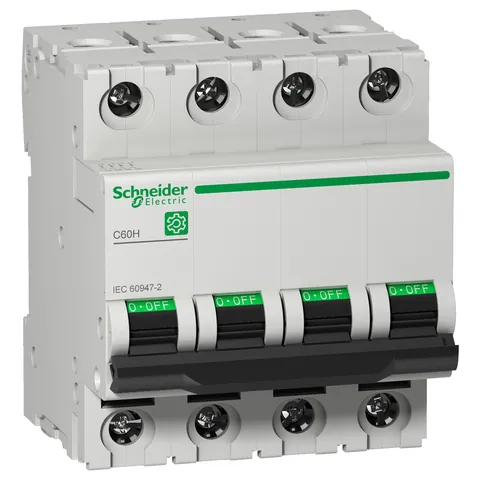

Schneider Electric M9F14413
Miniature Circuit Breaker, Multi9 C60H, 4P, 13A, C Curve, 15kA
Product Description
The Multi9 C60H is a low voltage miniature circuit breaker designed for a variety of applications. This device features 4 protected poles and is rated for a current of 13A with a C tripping curve, making it suitable for both AC and DC networks. The rated short circuit breaking capacity reaches up to 15kA at 415VAC, compliant with the EN/IEC 60947-2 standard.
This MCB is intended for use in distribution applications, providing essential protection against short circuits, earth leakage, and overload conditions. The device ensures operational longevity with an electrical endurance of 10,000 cycles and a mechanical endurance of 20,000 cycles. It can operate within a temperature range of -30°C to 70°C, with a storage temperature tolerance from -40°C to 80°C.
Efficient installation is facilitated through its DIN rail mounting capability, occupying a width of 8 pitches at 9mm each. The unit features tunnel type terminals accommodating wire sizes from 1 to 25 mm², both rigid and flexible, with a wire stripping length of 14 mm. Additionally, the Multi9 C60H provides effective indication with an ON/OFF local signalling feature.
With a rated insulation voltage of 500VAC and a rated impulse withstand voltage of 6kV, this circuit breaker conforms to the necessary safety standards. The device also meets the requirements for overvoltage category IV and has an IP20 degree of protection on its terminals according to IEC/EN 60529.
Need more information?
Offer details
- Offer from:
Trusted supplier — Czechia, member since 2023, 100–499 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Schneider Electric
- Line Rated Current
- 13 A 50 °C EN/IEC 60947-2
- Curve Code
- C
- Number Of Protected Poles
- 4
- Network Type
- DC || AC
- Standards
- EN/IEC 60947-2
- Product Certifications
- EAC || CCC
Available Offers
(4)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierCzechiaTrusted supplier — member since 2023, 100–499 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier PolandTrusted supplier — member since 2021, 50–99 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier LatviaTrusted supplier — member since 2026, 20–49 employees | Warranty Not specified |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Schneider Electric M9F14413, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 24-04-2025
