Schneider Electric
SH31004P11A2000
- Condition:
- Refurbished
- Available:
- 1 pc.In-StockUpdated at: 13-06-2023
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
Schneider Electric
SH31004P11A2000
1 / 1
Description
Active Mature

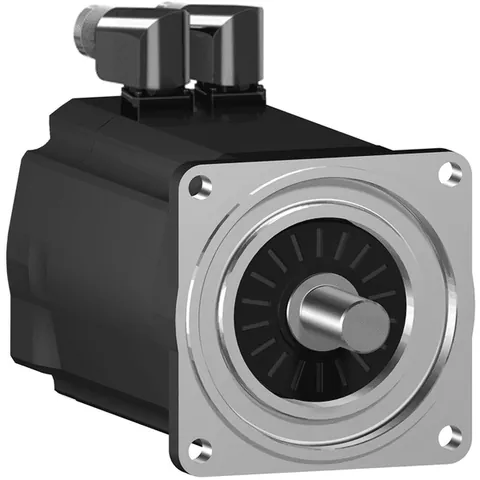

This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 4-pole servo motor features maximum mechanical speed of 6000RPM and parallel key shaft end without holding brake. It is an equipped with an absolute single-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 6.2A and a continuous power of 2500W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 276.5mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 9.2kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.- Country of Origin
- DE
- Part Number
- SH31004P11A2000
- Tariff Code
- 85015220
- EAN
- 3606485297316
- UNSPSC
- 26101205
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 10 pcs.In-StockUpdated at: 07-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
A total of 12 Parts In-Stock from 3 Distributors
- Delivery from:
- SKFRDE
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Available Offers (2)
Schneider Electric
SH31004P11A2000
- Condition:
- New Surplus
- Available:
- 1 pc.In-StockUpdated at: 07-11-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Offer with manufacturer lead time
Ships in:On Request
Best price:
€1,295.19
Complementary
- Circle Diameter Of The Mounting Holes
- 115 mm
- Continuous Power
- 2500 W
- Maximum Mechanical Speed
- 6000 rpm
- Maximum Radial Force Fr
- 1070 N 1000 rpm || 850 N 2000 rpm || 740 N 3000 rpm
- Encoder Type
- absolute single turn SinCos Hiperface
- Mounting Support
- international standard flange
- Rotor Inertia
- 4.22 kg.cm²
- Number Of Motor Poles
- 4
- Back Emf Constant
- 103 V/krpm 20 °C
- Maximum Axial Force Fa
- 160 N
- Centring Collar Depth
- 3.5 mm
- Holding Brake
- without
- Speed Feedback Resolution
- 128 periods
- Shaft Length
- 50 mm
- Phase
- three phase
- Length
- 276.5 mm
- Net Weight
- 9.2 kg
- Maximum Current Irms
- 32.3 A
- Centring Collar Diameter
- 95 mm
- Stator Inductance
- 18.35 mH
- Motor Flange Size
- 100 mm
- [Us] Rated Supply Voltage
- 115...480 V
- Peak Stall Torque
- 40.5 N.m 115...480 V three phase
- Number Of Mounting Holes
- 4
- Shaft Diameter
- 24 mm
- Key Width
- 8 mm
- Nominal Output Power
- 780 W 115 V single phase || 1490 W 230 V single phase || 2480 W 400 V three phase || 2600 W 480 V three phase
- Mounting Holes Diameter
- 9.0 mm
- Type Of Cooling
- natural convection
- Ip Degree Of Protection
- shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
- Shaft End
- parallel key
- Nominal Speed
- 750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
- Electrical Connection
- straight connector
- Stator Resistance
- 1.81 Ohm
- Continuous Stall Current
- 6.2 A
- Nominal Torque
- 9.9 N.m 115 V single phase || 9.5 N.m 230 V single phase || 7.9 N.m 400 V three phase || 6.9 N.m 480 V three phase
- Torque Constant
- 1.62 N.m/A 120 °C
- Continuous Stall Torque
- 10 N.m 115...480 V three phase
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Product Or Component Type
- servo motor
- Range Compatibility
- PacDrive 3
- Device Short Name
- SH3.....P
Contractual warranty
- Warranty
- 18 months
