Schneider Electric
STBDDO3705KS
1 / 1
Descripción
Activo maduro

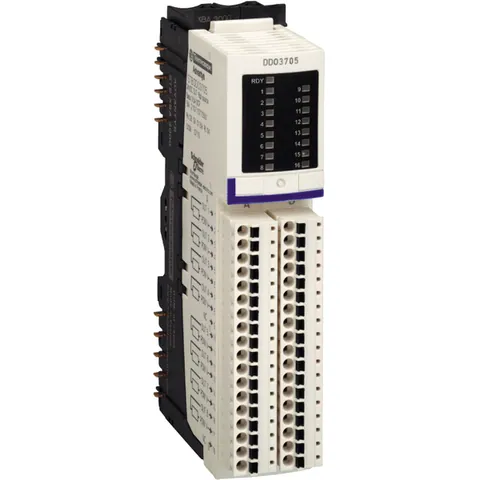

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBDDO3705 module, STBXBA3000 base and STBXTS1180, 18-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.- Country of Origin
- ID
- Part Number
- STBDDO3705KS
- Tariff Code
- 85389099
- EAN
- 3595863932638
- UNSPSC
- 32151601
€105.60
net€120.00
Envío gratis!1
Métodos de pago:
- Mejor oferta de:
Proveedor de confianza de Automa.Net- Disponibilidad:
- 2 piezasEn stockActualizado en: 09-11-2024
- Garantía:
- 24 meses
- Entrega Estimada:
- 11 noviembre a Reino Unido
- Condición:
- Nuevo Precintado de Fábrica
Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.
Información de envío
Proceso de Pago Seguro
Políticas de Devolución y Reembolso
Políticas de Envío
Políticas de Garantía
Environment
- Product Certifications
- UL || CSA || FM Class 1 Division 2
- Ambient Air Temperature For Storage
- -40...185 °F without derating
- Standards
- IEC 61131-2
- Ambient Air Temperature For Operation
- 0-60 °C without derating)
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
- Ip Degree Of Protection
- IP20 conforming to IEC 61131-2 class 1
- Pollution Degree
- 2 IEC 60664-1
- Ambient Air Temperature For Storage
- -40-85 °C without derating
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Ambient Air Temperature For Operation
- 32...140 °F without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Insulation Between Channels And Logic Bus
- 1500 V for 1 minute
- Cold Swapping
- yes
- Height
- 13.9 mm
- Reset
- manual reset COM fault
- Absolute Maximum Voltage
- 35 V 1.3 ms
- Discrete Output Logic
- positive
- Status Led
- 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (OUT1 to OUT16)
- Output Voltage
- 19.2...30 V DC
- Hot Swapping Fallback
- no for basic NIMs
- Maximum Load Inductance
- 1000 mH 4 Hz
- Supply
- power distribution module
- Response Time
- 2 ms off-to-on || 2 ms on-to-off
- Protection Type
- power protection integrated fuse on PDM time lag 5 A || reverse polarity protection || short-circuit protection || thermal overload protection
- Current Consumption
- 135 mA 5 V DC logic bus
- Marking
- CE
- Net Weight
- 0.086 kg
- Discrete Output Current
- 500 mA
- Width
- 128.3 mm
- Overvoltage Category
- II
- Depth
- 70 mm
- Product Compatibility
- power distribution module STBPDT3100/3105 || I/O base STBXBA3000
- Maximum Leakage Current
- 0.4 mA at state 0 30 V
- [Us] Rated Supply Voltage
- 24 V DC
- Maximum Load Capacitance
- 10 µF
Specifications
- Discrete Output Type
- solid state
- Range Of Product
- Modicon STB distributed I/O solution
- Discrete Output Voltage Type
- DC
- Product Or Component Type
- basic digital output kit
- Discrete Output Voltage
- 24 V
- Discrete Output Number
- 16
- Kit Composition
- STBDDO3705 module || STBXBA3000 base || STBXTS1180, 18-terminal screw type connector
