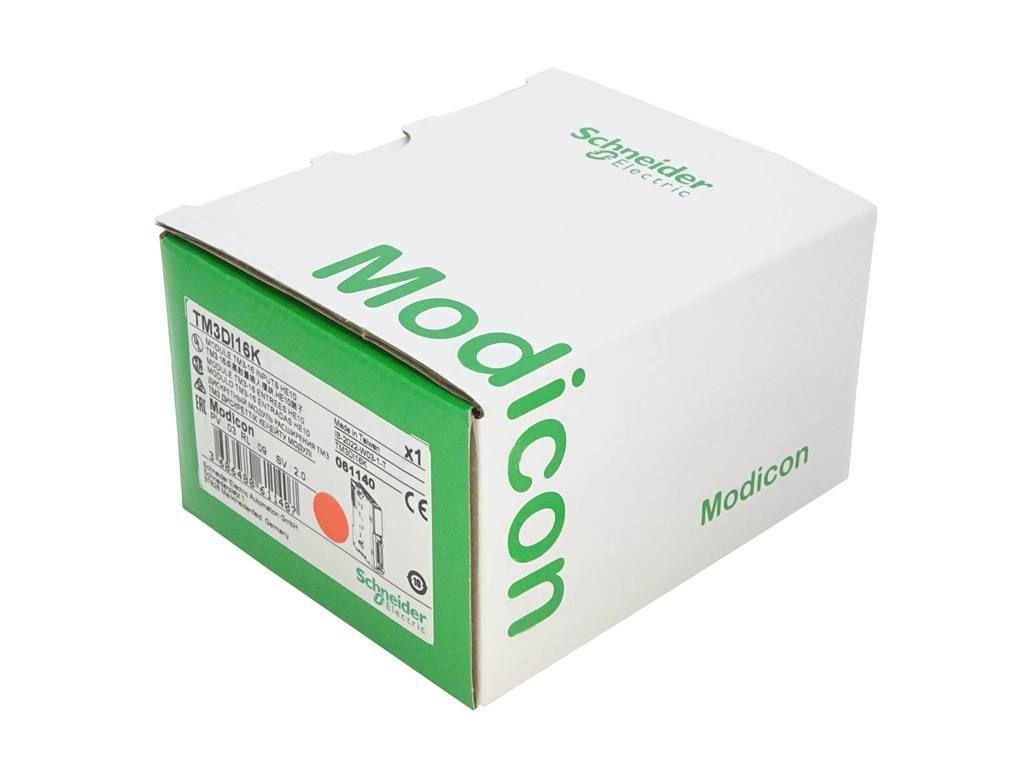

TM3DI16K

Complementary

Input Impedance

4.4 kOhm

Maximum Cable Distance Between Devices

unshielded cable <50 m regular input

Electrical Connection

HE-10 connector for inputs

Height

90 mm

Discrete Input Voltage Type

DC

Current State 1 Guaranteed

>= 2.5 mA input)

Marking

CE

Response Time

4 ms (turn-on) || 4 ms (turn-off)

Discrete I/O Number

16

Net Weight

0.65 kg

Voltage State 0 Guaranteed

0...5 V input

Current Consumption

5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state on) || 0 mA 24 V DC via bus connector at state off) || 35 mA 5 V DC via bus connector at state on)

Voltage State 1 Guaranteed

15...28.8 V input

Current State 0 Guaranteed

<= 1 mA input)

Mounting Support

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Local Signalling

for input status 1 LED per channel (green)

Width

21.4 mm

Depth

81.3 mm

Insulation

between input and internal logic 500 V AC || non-insulated between inputs

Specifications

Discrete Input Logic

sink or source (positive/negative)

Range Of Product

Modicon TM3

Discrete Input Voltage

24 V

Product Or Component Type

discrete input module

Discrete Input Current

5 mA input

Range Compatibility

Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262

Discrete Input Number

16 input IEC 61131-2 type 3

Environment

Product Certifications

cULus || CE || UKCA || RCM || EAC || cULus HazLoc

Resistance To Conducted Disturbances

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Standards

IEC 61131-2

Ambient Air Temperature For Operation

-10-35 °C vertical installation || -10-55 °C horizontal installation

Storage Altitude

0-3000 m

Pollution Degree

2

Shock Resistance

15 gn 11 ms

Resistance To Magnetic Fields

30 A/m 50/60 Hz IEC 61000-4-8

Vibration Resistance

3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel

Ambient Air Temperature For Storage

-25-70 °C

Relative Humidity

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Surge Withstand

1 kV I/O common mode IEC 61000-4-5 DC

Ip Degree Of Protection

IP20 with protective cover in place

Resistance To Electrostatic Discharge

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Operating Altitude

0...6561.68 ft (0...2000 m)

Resistance To Fast Transients

1 kV I/OIEC 61000-4-4

Electromagnetic Emission

radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1402009EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1402009EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)
