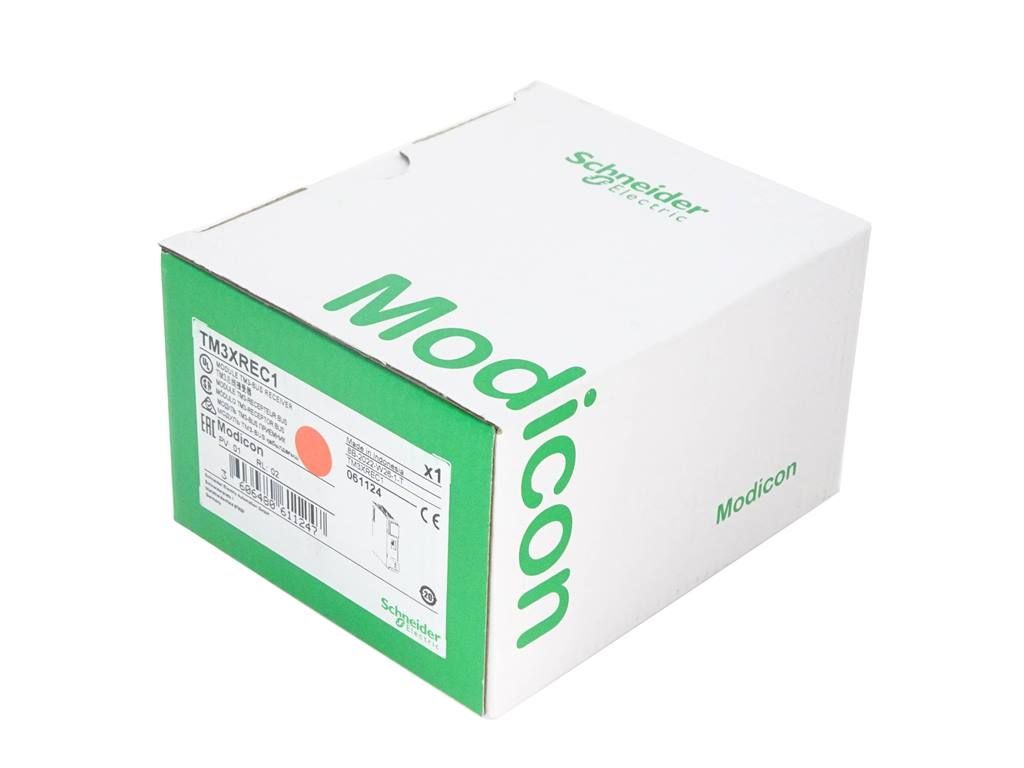

Schneider Electric TM3XREC1

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The remote receiver module is physically connected by a bus expansion cable, provides 7 I/O channels. It is remote receiver module with a rated supply voltage of 24V DC, a current consumption of 40mA at 24V DC via bus connector and a maximum power dissipation of 1W. The cable distance between devices is 0.5mm to 5mm extension cable with 2 RJ45 conductor between receiver and transmitter. It is furnished with RJ45 connector for connecting the bus transmitter, removable screw terminal block, 3 terminals for electrical connection. It is an IP20 rated product. Its dimensions are 23.65mm (Width) x 73.3mm (Depth) x 90mm (Height). It weighs 0.075kg. This product is certified by CE, Merchant Navy, GOST, CSA HazLoc, C-Tick. It meets Class I Division 2 Groups A/B/C/D CSA C22.2 No 213, Class I Division 2 Groups A/B/C UL 1604, CSA C22.2 No 142, IEC 61131-2 and UL 508 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost...
