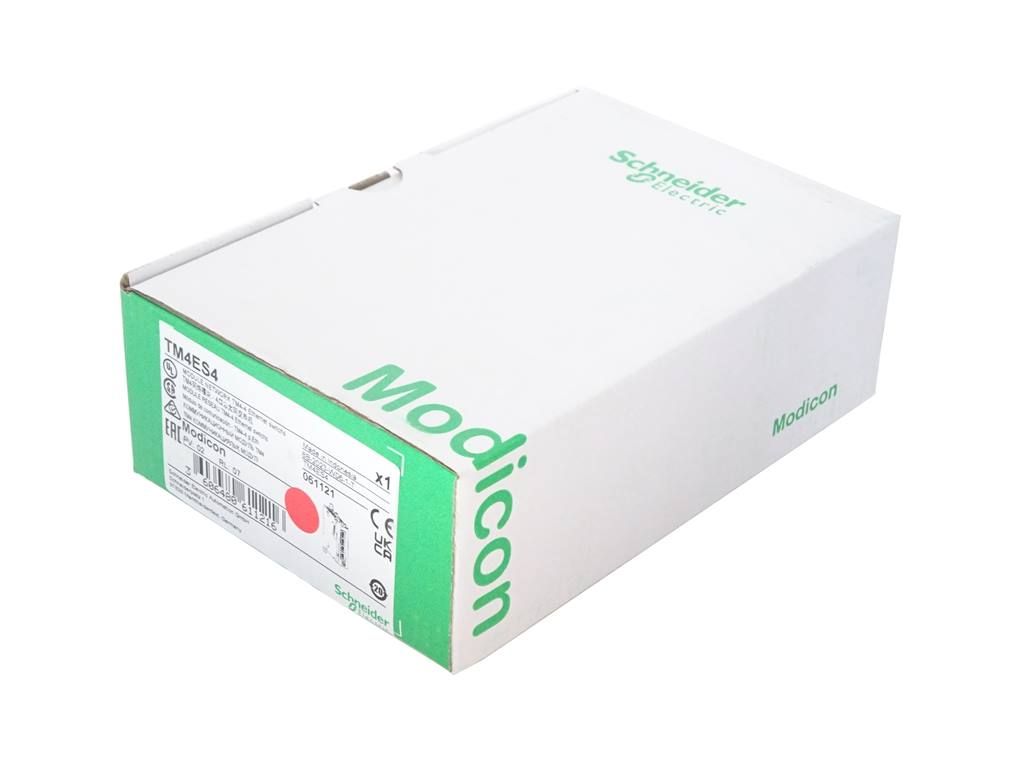

TM4ES4

Complementary

Electrical Connection

RJ45 4 connectors for connecting Ethernet network || screw connector terminal for connecting the functional ground

Height

90 mm

Integrated Connection Type

Ethernet 4 RJ45

Communication Service

Modbus TCP server || Modbus TCP slave device || FTP || NGVL || monitoring || IEC VAR ACCESS || programming || SNMP || Modbus TCP client || downloading || updating firmware || Ethernet/IP slave device || DHCP client

Port Ethernet

10BASE-T/100BASE-TX - 4 copper cable

Transmission Rate

10/100 Mbit/s

Marking

CE

Redundancy

no

Net Weight

0.125 kg

Current Consumption

360 mA 5 V DC communication bus

Communication Port Protocol

Ethernet IP/Modbus TCP || TCP (Transmission Control Protocol) || UDP (User Datagram Protocol) || SNMP

Product Compatibility

Modicon M241 logic controller || Modicon M251 logic controller

Mounting Support

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Local Signalling

for PWR 1 LED (green) || for Ethernet link 1 LED per channel (green/yellow) || for Ethernet port activity 1 LED per channel (green)

Surge Withstand

1 kV power lines (DC) common mode IEC 61000-4-5 || 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV power lines (AC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 0.5 kV I/O differential mode IEC 61000-4-5

Range Compatibility

Modicon M251 || Modicon M241

Web Services

web server

Width

25 mm

Maximum Number Of Connections

8 Modbus server || 16 Ethernet/IP device

Depth

90 mm

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1403009EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1403009EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Environment

Product Certifications

cULus || C-tick

Resistance To Conducted Disturbances

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3

Standards

UL 508 || IEC 61131-2

Ambient Air Temperature For Operation

-10-55 °C horizontal installation || -10-50 °C vertical installation

Storage Altitude

0-3000 m

Pollution Degree

2

Shock Resistance

15 gn 11 ms

Vibration Resistance

1 mm 5-13.2 Hz symmetrical rail || 3 gn 8.7-150 Hz symmetrical rail || 1 mm 5-13.2 Hz panel mounting || 0.7 gn 13.2-100 Hz panel mounting

Ambient Air Temperature For Storage

-25-70 °C

Relative Humidity

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Ip Degree Of Protection

IP20 with protective cover in place

Resistance To Electrostatic Discharge

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2 || 8 kV in air Marine specification (LR, ABS, DNV, GL) || 6 kV on contact Marine specification (LR, ABS, DNV, GL)

Resistance To Fast Transients

2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1.5 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)

Operating Altitude

0...6561.68 ft (0...2000 m)

Electromagnetic Emission

conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011 || radiated emissions 60...54 dBμV/m QP30-100 MHz Marine specification (LR, ABS, DNV, GL) || radiated emissions 24 dBμV/m QP156-165 MHz Marine specification (LR, ABS, DNV, GL) || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011 || radiated emissions 80...50 dμV/m QP150-30000 kHz Marine specification (LR, ABS, DNV, GL) || radiated emissions 54 dBμV/m QP100-2000 MHz Marine specification (LR, ABS, DNV, GL)

Specifications

Product Or Component Type

Ethernet unmanaged switch
