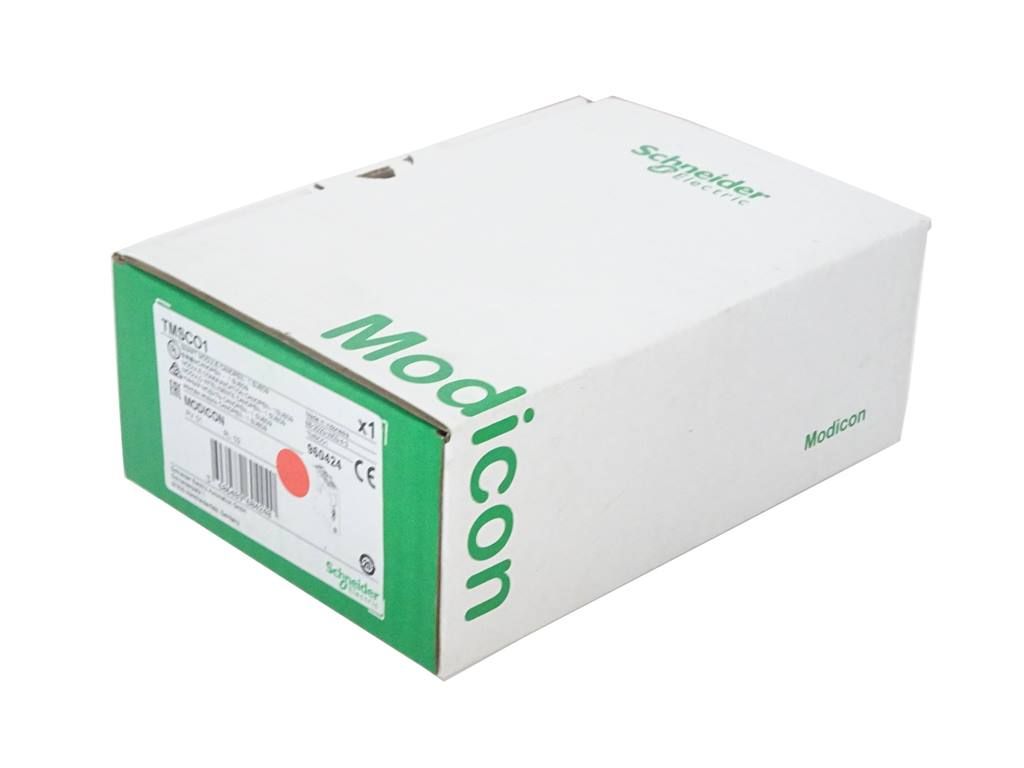

Schneider Electric TMSCO1

This smart communication module for Modicon M262 logic/motion controllers is designed to provide 1 CANopen master access to the controllers. TMSCO1 smart communication module integrates M262 controllers in CANopen architectures, ensures communication with devices. It figures one CANopen port for CANopen master communication and supports up to 63 slaves. Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. CANopen link can be configured between 20kbps and 1Mbit/s and supports up to 63 slaves. It is possible to connect one CANopen smart communication modules on a logi/motion controller, the power supply is embedded on the communication bus. It measures 30mm width, 88mm depth, and 100mm height. It weighs 0.150kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This smart communication module is compatible with Modicon M262 logic/motion controllers. It is configured by EcoStruxure Machine Expert software. TMSCO1 smart communication module installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of...
