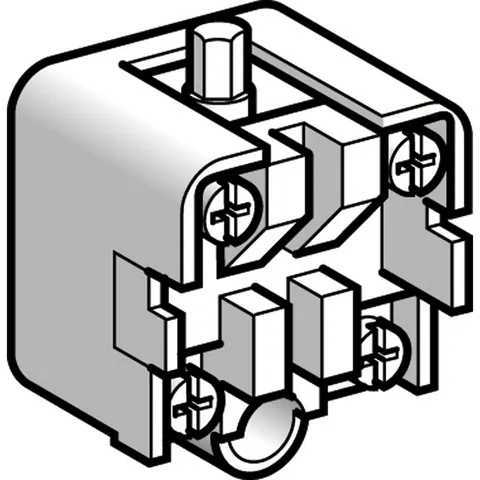

XCKZ01

Additional Information

Part Number

XCKZ01

UNSPSC

39121522

Tariff Code

8536509055

Country of Origin

FR

Specifications

Series Name

standard format

Contacts Type And Composition

1 C/O

Range Of Product

Telemecanique Limit switches XC Standard

Contact Operation

snap action

Product Or Component Type

limit switch contact block

Associated Body

ZC2JC1 || ZC2JC15 || ZC2JC16

Device Short Name

XCKZ

Number Of Poles

1

Contractual warranty

Warranty

18 months

Complementary

Electrical Connection

screw-clamp terminals 1 x 0.5...2 x 2.5 mm²

[Ui] Rated Insulation Voltage

500 VIEC 60947-5-1 || 300 VCSA C22.2 No 14

Electrical Durability

5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

Short-Circuit Protection

10 A cartridge fuse gG

Positive Opening

without

Minimum Actuation Speed

0.01 mm/s

Contacts Insulation Form

Za

Contacts Material

silver plated contacts

Contact Code Designation

A300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A

Product Compatibility

XC2J

Maximum Resistance Across Terminals

25 mOhm IEC 60255-7 category 3

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
