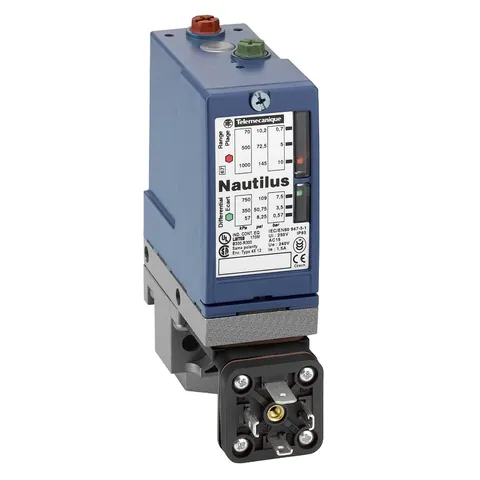

Schneider Electric XMLB500D2C11

The pressure switch is capable of operating within a range of up to 500 bar, making it suitable for applications such as hydraulic presses and water jet cutting machines. It features an adjustable differential for controlling pressure between two thresholds, with settings ranging from 30 bar to 500 bar on rising pressure and 7 bar to 447.4 bar on falling pressure.

Constructed with a zinc alloy body, this device ensures durability and reliability. It supports a wide temperature range of up to 160°C for hydraulic oils and is designed for direct mounting on tubing. The pressure switch has a mechanical durability of 3 million cycles, minimizing maintenance requirements.

It complies with multiple international standards, including CCC, EN/IEC 60947-5-1, and UL 508, ensuring its suitability for various industrial environments. The electrical connection utilizes a 4-pin male connector compatible with EN 175301-803-A, while its fluid connection is a G 1/4 female ISO 228.

In terms of performance, it has a repeat accuracy of 2% and maximum permissible accidental pressure of 1125 bar. The device can withstand a destruction pressure of 2250 bar and operates under class I electrical shock protection.
