Siemens 3LD2022-1TL13

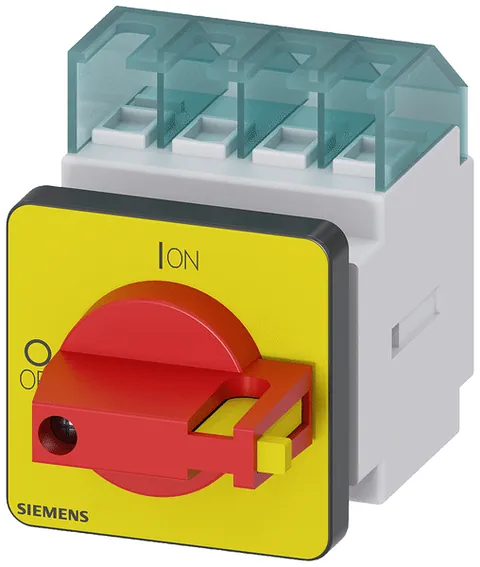

The Switch Disconnector 3LD is a 4-pole device intended for emergency shutoff applications, featuring a rated current of 16 A. This unit operates efficiently with a power capacity of 7.5 kW under AC-23 conditions at 400 V. Its design incorporates a front-mounted, knob-operated mechanism and is characterized by a red/yellow color scheme.

With a degree of protection rated at IP65, this switch disconnector is suitable for various environments. It is equipped with four-hole mounting options, ensuring secure installation. The device is interlockable and fulfills the requirements for both a main switch and a safety switch, making it versatile for numerous applications.

Additionally, the Switch Disconnector 3LD features a fixed built-in device construction and utilizes frame clamp connections for the main circuit. Its design does not include a motor drive and does not support ground mounting, which emphasizes its focused application in safety and maintenance operations.
