Siemens
3RK1304-5LS40-4AA3

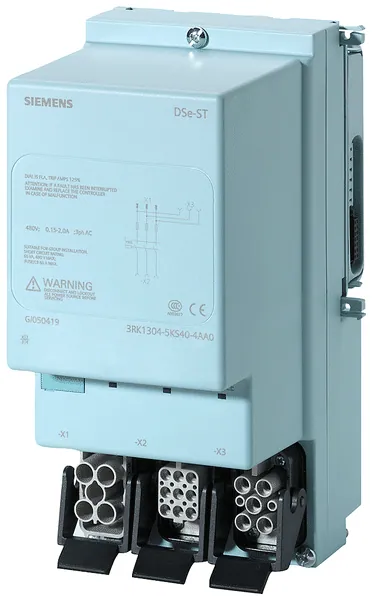

ET 200PRO DSE ST
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€400.69
1
Payment methods:
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€381.53
Description
ActiveRoHS Compliant
ET 200PRO DSE ST DIRECT STARTER STANDARD; MECH. SWITCHING; ELECTRO. UE PROTECTION; 3PH 400 V/5.5KW; 1.50A...12.00 BRAKE CONTACT 400 V AC; - HAN Q4/2 - HAN Q8/0Additional Information
- Part Number
- 3RK1304-5LS40-4AA3
- UPC
- 662643393781
- Tariff Code
- 8536504000
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Motor starter/Motor starter combination
- Class Code : EC001037
- Version : 7
Specifications
- Depth
- 150 mm
- Width
- 110 mm
- Height
- 230 mm
- Release class
- CLASS 10
- Voltage type for actuating
- DC
- Degree of protection (IP)
- IP65
- Rated operation current Ie
- 12 A
- With short-circuit release
- true
- Kind of motor starter
- Direct starter
- Overload release current setting
- 1.5 A
- Rated operation current at AC-3, 400 V
- 12 A
- Rated operation power at AC-3, 400 V
- 5.5 kW
- Rated control supply voltage Us at DC
- 20.4 V
- Coordination class according to IEC 60947-4-3
- Class 1
- Country of Origin
- DE
- Type of electrical connection of main circuit
- Flat plug-in connection
