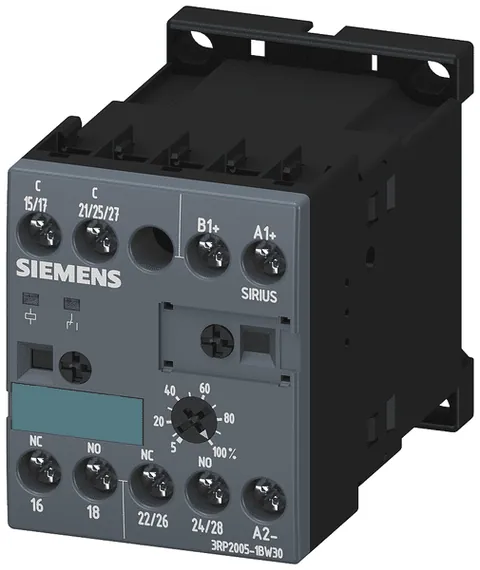

Siemens 3RP2005-1BW30

The timing relay operates within an adjustable time range of 0.05 seconds to 100 hours, making it suitable for various timing applications. It features 16 different functions and is equipped with two change-over contacts (2CO). The device supports a control voltage of 24 to 240 VAC/DC, operating effectively at both 50 Hz and 60 Hz.

Designed for DIN rail mounting, the relay has a compact width of 45 mm. It ensures high operational reliability with a mechanical service life of around 10 million cycles and an electrical endurance rated at 100,000 cycles at AC-15, 230 V. Its protection class of IP20 provides adequate safety measures for indoor applications.

Furthermore, the relay accommodates a wide ambient temperature range from -25 °C to +60 °C during operation, ensuring functionality even in harsh conditions. The device adheres to several electromagnetic compatibility standards, ensuring minimal interference and enhanced stability in various environments.

For installation, it uses screw-type terminals compatible with solid and stranded wires and allows for a tightening torque of 0.8 to 1.2 N·m. The design of the control terminals is non-floating, and the relay is compliant with international safety standards, making it a reliable choice for automation systems.
