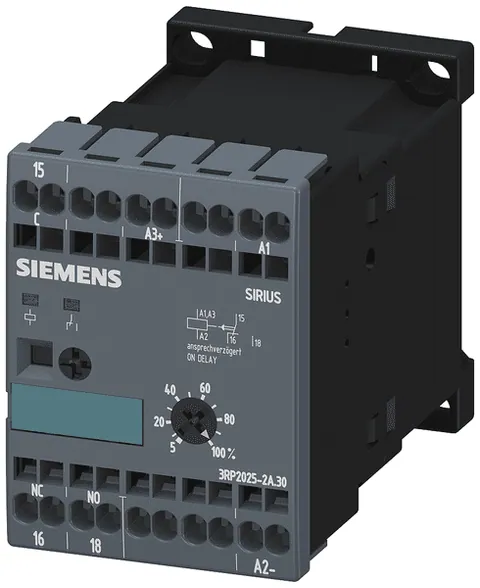

Siemens 3RP2025-2AQ30

This timing relay is designed for on-delay applications, operating at a control voltage of 24V AC/DC and supplying 100 to 127V AC at 50/60 Hz. It features an adjustable time range from 0.05 seconds to 100 hours, making it suitable for various timing tasks.

With a width of 45 mm, it can be conveniently mounted on 35 mm DIN rail. The relay output includes one change-over contact, making it capable of handling diverse switching requirements. The device operates reliably under conditions of -25 to +60 °C and can be stored at temperatures ranging from -40 to +85 °C.

Designed with a mechanical service life of approximately 10 million operating cycles and an electrical endurance rated for 100,000 cycles at AC-15, the relay ensures long-term performance. Its compact design allows for flexible installation, while the spring-type terminals facilitate easy wiring.

Notably, the timing relay is compliant with various electromagnetic compatibility standards, ensuring minimal interference in operational environments. The product is free from protective coatings on the printed-circuit board and does not require additional remote controls, offering a straightforward solution for timing control applications.
