Siemens 3SE5162-0CD02

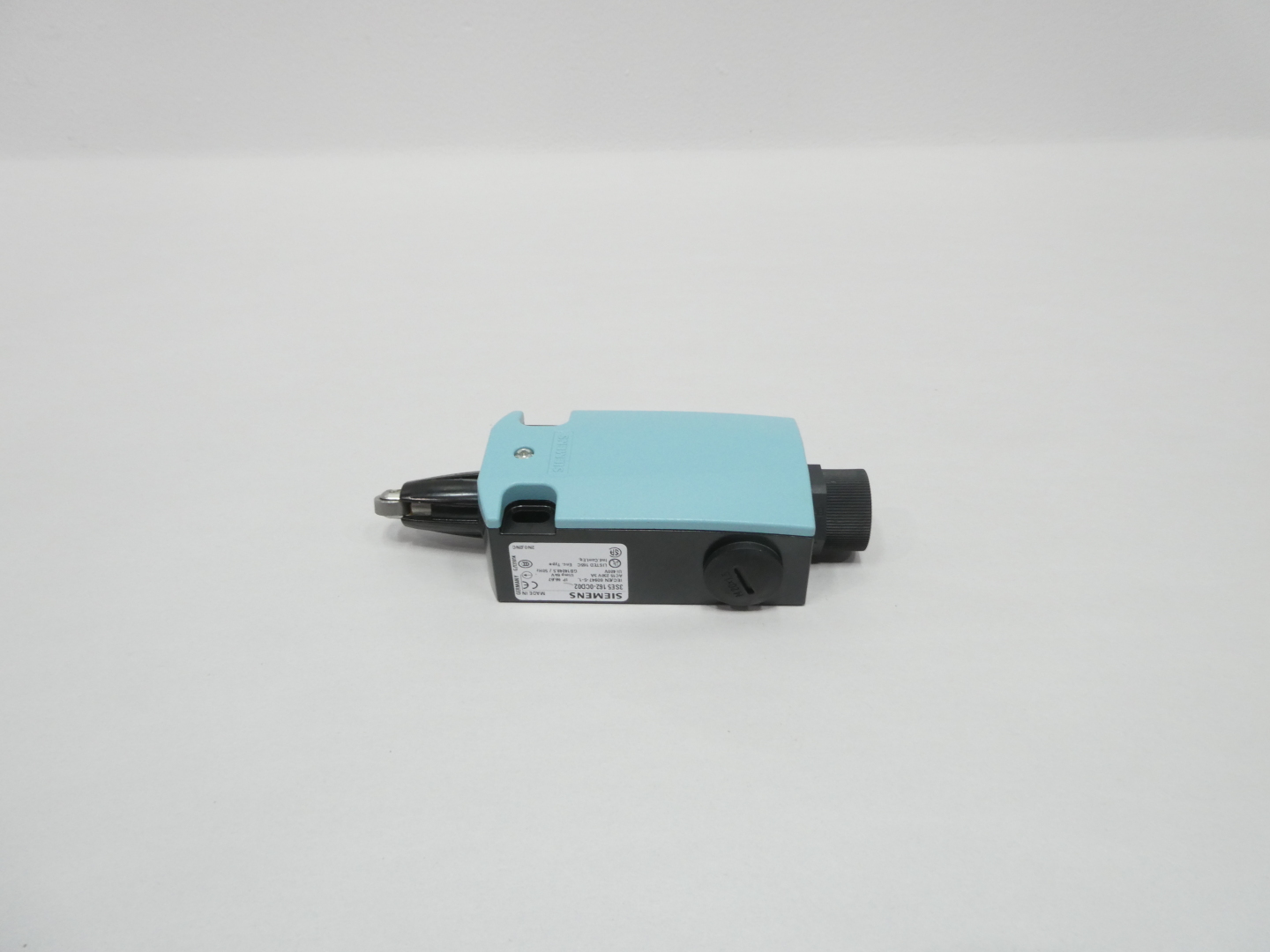

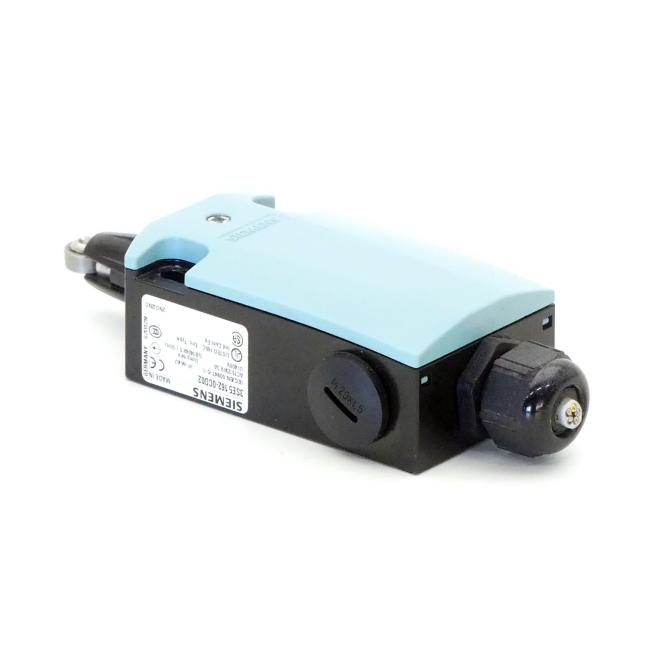

The position switch is designed with a metal enclosure measuring 56 mm in width, featuring a roller plunger with a stainless steel roller of 13 mm in diameter. It is equipped with three device connections, specifically 3 x (M20 x 1.5), ensuring versatile installation options.

This switch includes two quick action contacts configured as 1 normally open (NO) and 1 normally closed (NC) contact, suitable for safety functions. The device is rated for protection classes IP66/IP67 and NEMA 12, making it suitable for various industrial environments where moisture and dust are concerns.

With a height of 37.3 mm and a length of 138.3 mm, the switch is designed for efficient space utilization. It operates effectively in ambient temperatures as low as -25 °C. The housing is lacquered for durability, and the forced opening mechanism ensures reliable operation.

Additionally, the position switch features a roller cam as its control element and does not provide an electronic output. The rated operation current is 6 A at AC-15, 24 V and 3 A at DC-13, 24 V, with specific ratings at different voltages, ensuring compatibility with a range of electrical systems. This switch is ideal for applications requiring quick-break switching functionality.
