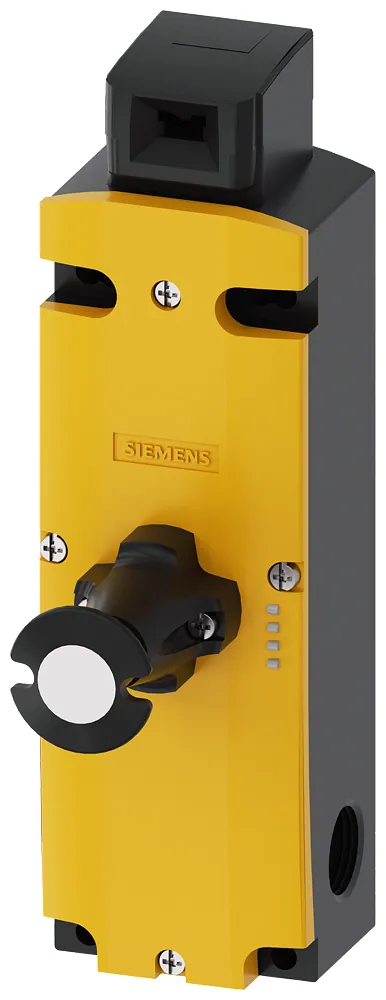

Siemens 3SE5322-2SF22

This safety position switch is designed with a mechanical locking force of 1300 N, allowing for secure operation in various applications. It supports five directions of approach and includes a spring-locked escape release mechanism accessible from the front. The device operates at a voltage of 115 V AC and features monitoring actuators with two normally closed (NC) contacts and one normally open (NO) contact, as well as monitoring magnets with a similar configuration.

The switch is equipped with a yellow/green LED display for status indication, enhancing operational visibility. It is constructed from plastic, with an uncoated housing, and has a compact design with dimensions of 54 mm in width, 185 mm in length, and 43.5 mm in height. With an IP65 protection rating, it is suitable for a variety of environments, ensuring reliable performance under challenging conditions.

It is essential to note that this product is supplied without an actuator, which must be ordered separately as 3SE5000-0AV0. Additionally, it supports safety functions and provides a total of four safety auxiliary contacts. The switch operates effectively within an ambient temperature range of -25 °C, making it versatile for use in diverse industrial settings.
