Siemens 3VA1025-3ED36-0AA0
3VA10 3P 25A 25KA FTFM BOX Circuit Breaker
:fill(white):quality(80)/media/thumbor)
Product Description

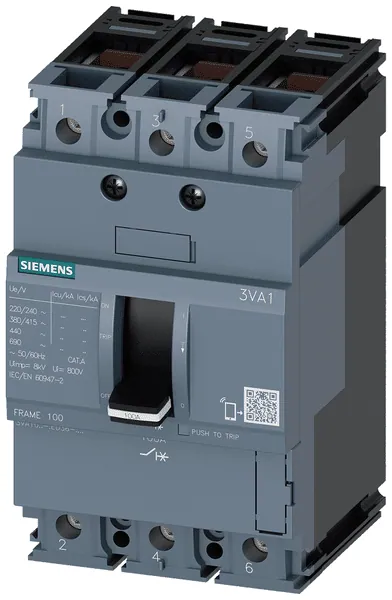

The 3VA10 3-pole circuit breaker is designed for thermal-magnetic protection, featuring a fixed current setting of 25A and a rated short-circuit breaking capacity of 25kA at 415V. It operates at a maximum rated voltage of 690V and complies with low breaking capacity classification N. The dimensions of the device are 3 x 5.1 x 3.5 inches.
Equipped with a TM210 trip unit, this circuit breaker provides overload protection with a fixed Ir setting of 25A and a short-circuit protection setting of 12.8 times the rated current. The connection is facilitated through box terminals, and the device features a front-side electrical connection for the main current circuit.
Constructed with an IP40 protection class, the circuit breaker is suitable for a wide range of environmental conditions, with an operational temperature range from -25°C to 70°C and a storage temperature range from -40°C to 80°C. The device has a mechanical service life rated for 20,000 operating cycles, ensuring reliability in various applications.
Need more information?
Offer details
- Offer from:
Trusted supplier — Poland, member since 2023, 50–99 employees - Availability:
- 5 pcs.Updated at: 20-09-2026In-Stock
- Warranty:
- 24 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Siemens
- Number of poles
- 3
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 25 A
Available Offers
(3)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
| Condition New Factory Sealed | Availability 5 pcs. Updated at: 20-09-2026In-Stock | SupplierPolandTrusted supplier — member since 2023, 50–99 employees | Warranty 24 months | |
 | Condition New Factory Sealed | Availability On requestLead time: 5 days | Supplier GermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 3VA1025-3ED36-0AA0, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 20-09-2026
