Siemens 3VA1125-3GF42-0AA0

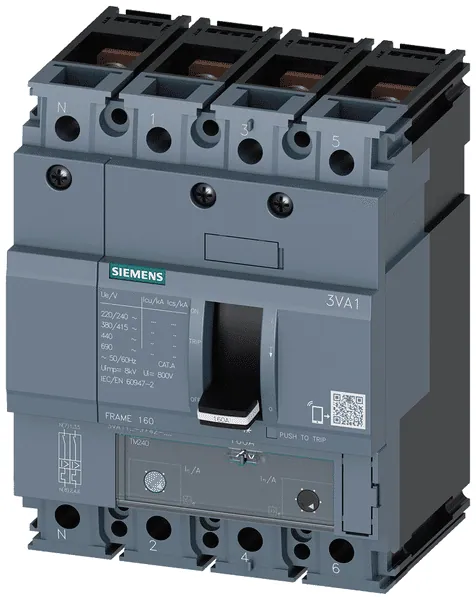

3VA11 4P 25A 25KA Circuit Breaker
Product Description
The 3VA11 4P 25A 25KA Circuit Breaker features a thermal-magnetic trip unit, suitable for low voltage applications as per IEC standards. With a breaking capacity classified as Class N, this device handles a rated voltage of 690V and provides 25kA of short-circuit protection at 415V.
Designed for four-pole configurations, it allows for adjustable overload protection settings between 18A to 25A and short-circuit protection settings ranging from 6.4 to 12.8 times the nominal current. The circuit breaker is equipped with a nut keeper for enhanced connection stability.
Dimensions of the unit are 4 x 5.1 x 3.5 inches, and it is constructed with a fixed built-in technique. The device features a front-side connection for the main current circuit with a screw connection type, and it is not suitable for DIN rail mounting. The circuit breaker is rated for an IP40 degree of protection, ensuring its durability in various environments.
Overall, this circuit breaker is a complete device with a protection unit.
Need more information?
Offer details
- Offer from:
Trusted supplier — Germany, member since 2024 - Availability:
- 2 pcs.Updated at: 15-09-2026In-Stock
- Warranty:
- 24 months
- Condition:
- New Surplus
Specifications
- Brand
- Siemens
- Number of poles
- 4
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 25 A
Available Offers
(3)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Surplus | Availability 2 pcs. Updated at: 15-09-2026In-Stock | SupplierGermanyTrusted supplier — member since 2024 | Warranty 24 months | |
| Condition New Factory Sealed | Availability On requestLead time: 5 days | SupplierGermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 3VA1125-3GF42-0AA0, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 15-09-2026
