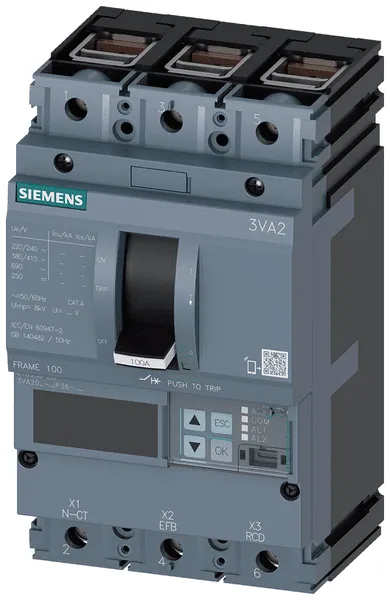

Siemens 3VA2010-7JP36-0AA0
3VA20 3P 100A 110KA ETU5-LSI BOX
Product Description
The 3VA20 circuit breaker is designed for low voltage applications, offering a robust electronic trip unit (ETU550) equipped with an LCD display. It delivers a high breaking capacity classified as Class C, with a rated current of 100A across three poles. The device's short-circuit breaking capacity is rated at 110kA at 415V and 2kA at 690V, making it suitable for demanding operational environments.
It features a connection with a box terminal and a steel wrap-around lug. The dimensions of the unit are 4.1 inches in width, 7.1 inches in height, and 4.2 inches in depth. This circuit breaker also supports optional motor drive functionality and is designed for top hat rail mounting, enhancing its installation flexibility.
Key specifications include an overload release current setting adjustable between 40A and 100A, and a short-circuit release adjustment range from 150A to 60A. The device is constructed with IP40 protection, ensuring its reliability in various conditions. Additional features include an absence of integrated earth fault protection and an under-voltage release mechanism.
Need more information?
Offer details
- Offer from:
Trusted supplier — Germany, member since 2024 - Availability:
- On requestLead time: 5 days
- Warranty:
- Not specified
- Condition:
- New Factory Sealed
Specifications
- Brand
- Siemens
- Number of poles
- 3
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 100 A
Available Offers
(2)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time: 5 days | SupplierGermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 3VA2010-7JP36-0AA0, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 16-09-2026
