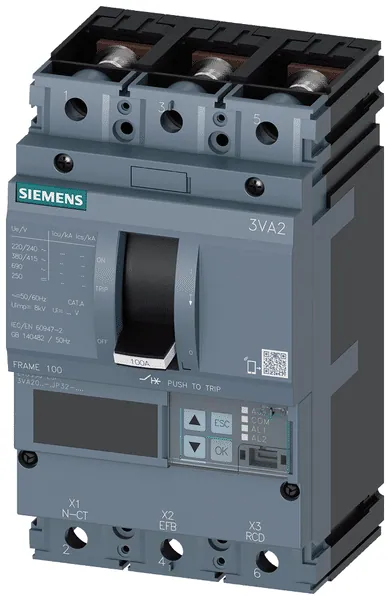

Siemens 3VA2063-5JP32-0AA0
3VA20 3P 63A 55KA ETU5-LSI NUT Circuit Breaker
Product Description
The 3VA20 3-pole circuit breaker is designed for low voltage applications, offering reliable line protection with an electronic trip unit (ETU550) that features a liquid crystal display (LCD). The device has a nominal current rating of 63A and is capable of handling a short-circuit breaking capacity of 55kA at 415V. It is constructed to fit a standard DIN rail, facilitating straightforward installation.
With dimensions of 4.1 x 7.1 x 4.2 inches, this device is compact yet effective. It provides overload protection settings ranging from 25A to 63A and short-circuit protection adjustable between 0.6 to 10 times the nominal current. The circuit breaker is designed with a front-side connection for the main current circuit and features a robust construction suitable for various industrial environments.
Additional functionalities include the option for motor drive integration and the capability for N conductor protection with an external current transformer, ensuring flexibility in various applications. The degree of protection is rated at IP40, making it suitable for indoor use.
Need more information?
Offer details
- Offer from:
Trusted supplier — Germany, member since 2024 - Availability:
- On requestLead time: 5 days
- Warranty:
- Not specified
- Condition:
- New Factory Sealed
Specifications
- Brand
- Siemens
- Number of poles
- 3
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 63 A
Available Offers
(2)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time: 5 days | SupplierGermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 3VA2063-5JP32-0AA0, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
