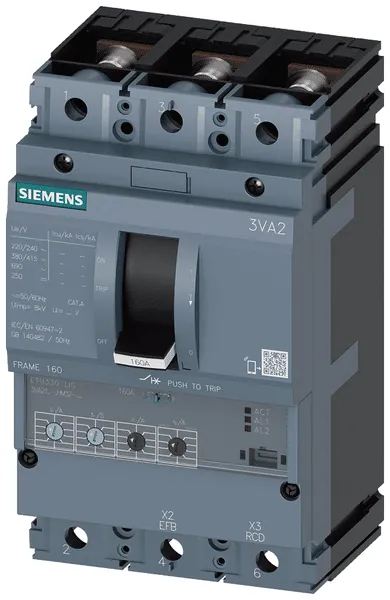

Siemens 3VA2110-6HM32-0AA0

The 3VA21 3P 100A 85KA ETU3-LIG NUT is a low voltage molded case circuit breaker designed according to IEC standards. This device features a high breaking capacity classified as Class H, allowing it to support an Icu rating of 85 kA at 415V and 2.5 kA at 690V. With an overload protection setting ranging from 40A to 100A and short-circuit protection adjustable from 1.5 to 12 times the rated current, this circuit breaker ensures reliable operational safety.

Integration of an electronic trip unit, specifically the ETU330, provides advanced line protection features, while the device's construction allows for easy installation on a DIN rail with a fixed built-in technique. The circuit breaker is designed for a maximum rated voltage of 690V and maintains a degree of protection rated at IP40, ensuring durability in various environments.

Connection is facilitated through a front-side screw connection, and the inclusion of a nut keeper kit enhances mechanical stability. With dimensions of 4.1 x 7.1 x 4.2 inches, this circuit breaker is compact yet capable of handling substantial electrical loads efficiently.
