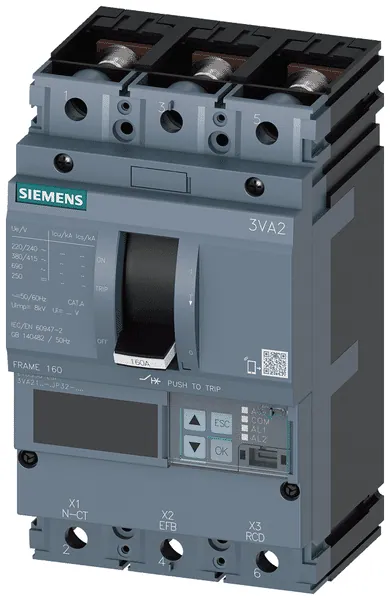

Siemens 3VA2163-6JP32-0AA0
3VA21 3P 63A 85KA ETU5-LSI NUT
Product Description
The 3VA21 circuit breaker is designed for low voltage applications, featuring a three-pole configuration and a maximum current rating of 63A. Its high breaking capacity class H allows for an impressive short-circuit breaking capacity of 85kA at 415V and 2.5kA at 690V, making it suitable for demanding conditions.
Equipped with an ETU550 electronic trip unit, this device provides overload protection with adjustable settings from 25A to 63A and short-circuit protection from 0.6 to 10 times the rated current. Additionally, it includes an optional N conductor protection utilizing an external current transformer, ensuring comprehensive line protection.
With a robust IP40 degree of protection, the circuit breaker is designed for built-in device fixed installation and is compatible with DIN rail mounting. The front-side connection for the main current circuit uses a screw connection for secure installation.
Dimensions of the unit measure 4.1 inches in width, 7.1 inches in height, and 4.2 inches in depth, allowing for compact integration into control panels.
Need more information?
Offer details
- Offer from:
Trusted supplier — Germany, member since 2024 - Availability:
- On requestLead time: 5 days
- Warranty:
- Not specified
- Condition:
- New Factory Sealed
Specifications
- Brand
- Siemens
- Number of poles
- 3
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 63 A
