Siemens 8UD1771-2AD05

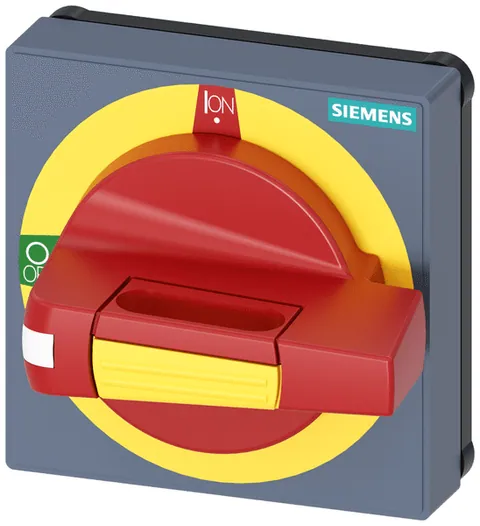

HANDLE WITH MASKING FRAME, EMERGENCY STOP
Product Description
The HANDLE WITH MASKING FRAME serves an essential role in emergency stop applications. Designed with a square masking frame of size 75x75 mm, it accommodates shafts measuring 6x6 mm and 8x8 mm. The handle itself is 45 mm in length and is marked with a red-yellow color scheme for clear visibility.
It is an accessory suited for devices such as the 3KD sizes 1 and 2, 3KF size 1, and 3LD5 UL. The device is equipped with a door interlocking lock system, ensuring safety during operation. Notably, it features an emergency OFF function and is lockable for enhanced security.
With a protection class of IP65, this handle is suitable for use in various environments. The overall dimensions are 84 mm in height, 84 mm in width, and 80 mm in depth, with a net weight of 173 g. The product is manufactured in Germany and is categorized under the designation code for emergency stop applications.
Need more information?
Offer details
- Offer from:
Trusted supplier — Germany, member since 2024 - Availability:
- 1 pc.Updated at: 15-09-2026In-Stock
- Warranty:
- 24 months
- Condition:
- New Surplus
Specifications
- Brand
- Siemens
- Type of accessory
- Other
- Model / design of the product
- EMERGENCY OFF
- Model / design of handle
- Red-yellow
- Model / design of the door lock system
- Door interlocking
- Model / size of cross-section of the shaft of door-coupling rotary operating mechanism
- 8x8 mm
- Model / size format of the masking frame of door-coupling rotary operating mechanism
- 75x 75 mm
Available Offers
(4)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Surplus | Availability 1 pc. Updated at: 15-09-2026In-Stock | SupplierGermanyTrusted supplier — member since 2024 | Warranty 24 months | |
| Condition New Surplus | Availability 1 pc. Updated at: 15-09-2026In-Stock | SupplierGermanyTrusted supplier — member since 2024 | Warranty 24 months | |
| Condition New Factory Sealed | Availability On requestLead time: 3 days | SupplierGermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 8UD1771-2AD05, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 15-09-2026
