Weidmuller 1021740150

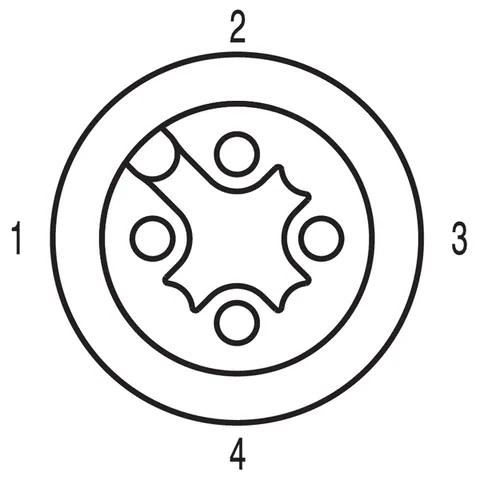

This sensor and actuator connecting line, designated as SAIL-M12GM12W-4-1.5T, is designed with M12 connectors, providing a reliable connection for various applications. The configuration includes a straight pin and a socket with a 90° orientation, facilitating ease of installation in tight spaces.

The product features a durable PUR sheath and is compliant with IEC 61076-2-101 standards. It operates within a temperature range of -25°C to +80°C, making it suitable for diverse environmental conditions. The connector supports a rated voltage of 250V and a rated current of 4A, ensuring stable performance in operational settings. Additionally, it has an impressive protection degree of IP65, IP66, IP67, and IP68 when properly connected.

The cable measures 1.5 m in length and consists of 4 poles with a core cross-section of 0.34 mm². It is designed to withstand bending cycles of up to 10 million and offers torsion resistance of 360° per meter, highlighting its durability under movement conditions. The outer diameter of the cable is 4.9 ± 0.2 mm and it is unshielded. The product is not halogenated and complies with several environmental standards including REACH.
