Weidmuller 1047130000
15.00 mm PCB Terminal 2 Poles 90° 4.5SN BK BX
Product Description
The printed circuit board terminal, designed for efficient connectivity, measures 15.00 mm and accommodates 2 poles. It features a 90° angle and a solder pin length of 4.5 mm, suitable for various applications.

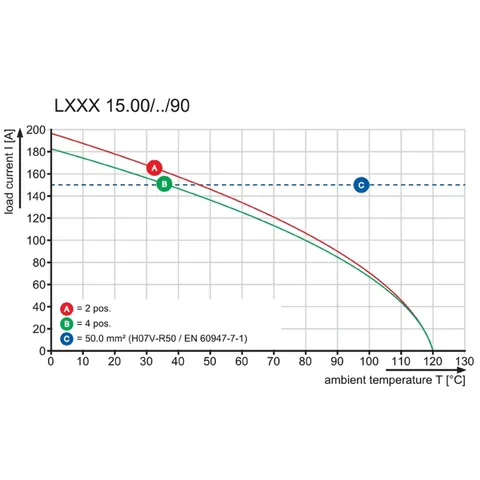

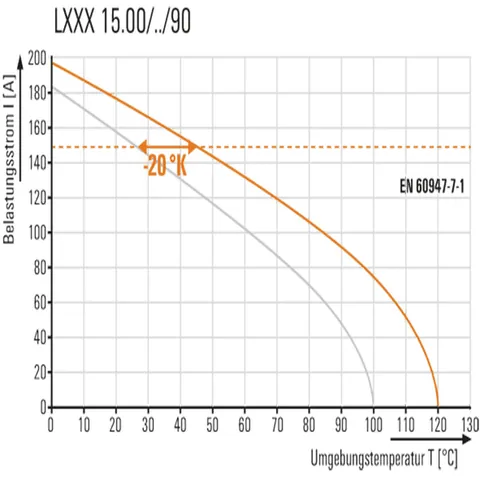

With a clamping range of up to 50 mm², this terminal is capable of handling substantial current loads, rated at 126 A for use groups B and C according to UL 1059 standards. It also meets IEC specifications with a rated current of 150 A at a temperature of 20°C, ensuring reliable performance across varying conditions.
The terminal’s construction incorporates high-quality materials, including a black Wemid (PA) insulating material with a Comparative Tracking Index (CTI) of ≥ 600, enhancing its durability and safety. It is designed to operate within a temperature range of -50°C to 120°C, making it suitable for diverse environments.
Insulation strength is rated at ≥ 108 Ω, and the terminal complies with multiple approval standards, including CSA and EAC, highlighting its international recognition. The product family is part of the OMNIMATE Power series, ensuring compatibility and reliability in electrical connections.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (UR)
- UR
- Certificate No. (UR)
- E60693
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated voltage (Use group C / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 126 A
- Rated current (Use group C / UL 1059)
- 126 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1047130000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 19-09-2026
