Weidmuller 1047150000
15.00 mm 4-Pole PCB Terminal 90° Solder Pin 4.5 mm Black
Product Description

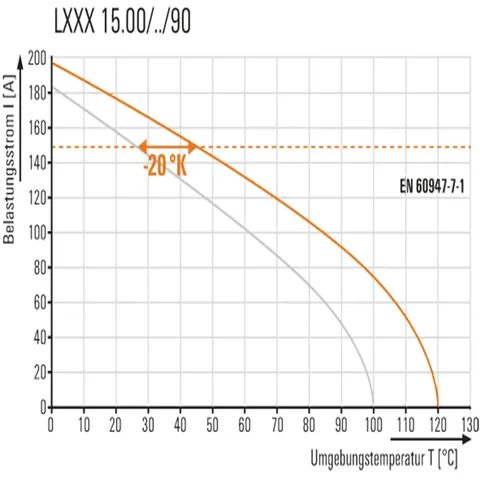

This printed circuit board terminal is designed with a width of 61 mm and a height of 56 mm, accommodating a clamping range of up to 50 mm². It includes a clamping yoke connection and features a solder pin length of 4.5 mm. The terminal operates within a temperature range of -50 °C to 120 °C, making it suitable for various applications.

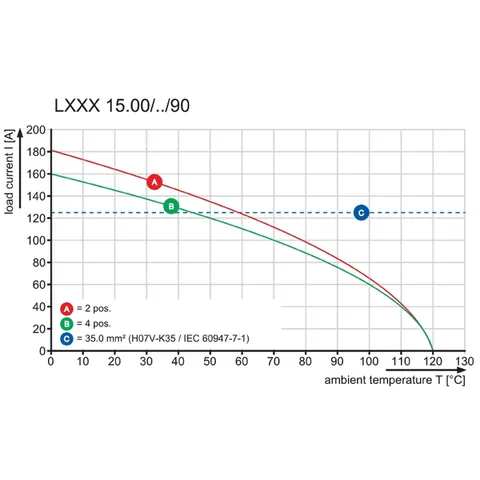

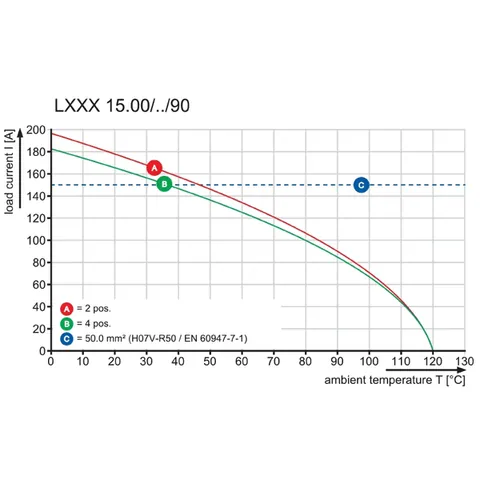

With a rated current of 150 A at a minimum number of poles according to IEC standards, the terminal supports wire cross-sections from AWG 20 to AWG 1. It is constructed from a black Wemid (PA) insulating material, ensuring a high insulation strength of ≥ 108 Ω. Additionally, the terminal meets several approvals including CSA and EAC, confirming its compliance with international safety standards.
Notably, the terminal is packaged in a box with dimensions of 58 mm in length, 95 mm in width, and 253 mm in height. The product family belongs to the OMNIMATE Power series, classified under the designation code applicable to this type of terminal.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (UR)
- UR
- Certificate No. (UR)
- E60693
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated voltage (Use group C / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 126 A
- Rated current (Use group C / UL 1059)
- 126 A
