Weidmuller 1057911000
SAIL-M12GM12W-4B-10U
Product Description

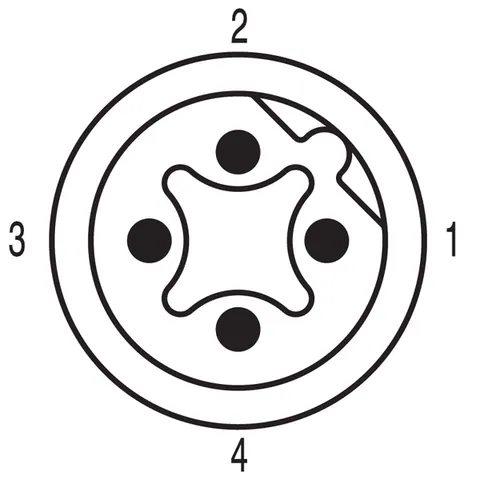

This product is a connecting line designed for sensor and actuator applications, utilizing M12 / M12 connectors with a configuration of 4 poles. The cable measures 10 meters in length and features a pin straight to socket 90° design.
Constructed from PUR, the sheath material offers durability while also being halogen-free. It carries a rated voltage of 250 V and a rated current of 4 A. The cable is not shielded and operates effectively within a temperature range of -25 to +80 °C when in motion, and -40 to +80 °C when stationary.
The connector complies with IEC 61076-2-101 standards, ensuring its suitability for various industrial applications. It also boasts an IP68 protection rating when connected, making it resistant to dust and water ingress.
Additional specifications include a core cross-section of 0.34 mm² and an outer diameter of 4.7 ± 0.2 mm. The cable is designed for a minimum bending radius of 5 x cable diameter when stationary and 10 x cable diameter when in motion. It supports a maximum acceleration of 5 m/s² and can endure up to 2 million bending cycles.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E307231
- Connector standard
- IEC 61076-2-101
- Certificate no. (cULus)
- E307231
- AF size
- 12 mm
