Weidmuller 1089890000
SV 7.62HP/03/90MSF3 SC/04R SN BK BX
Product Description

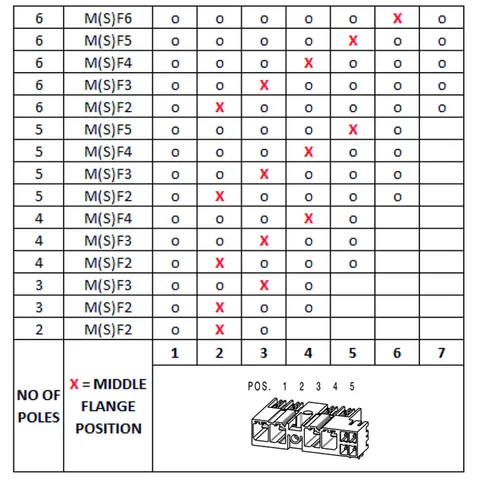

The SV 7.62HP/03/90MSF3 SC/04R SN BK BX is a PCB plug-in connector that utilizes a male header configuration with a closed side. This connector includes a middle screw flange and is designed for THT solder connections, accommodating a pitch of 7.62 mm and featuring three poles with a 90° outgoing elbow.
With a solder pin length of 3.5 mm, each pole comprises two solder pins. The connector's construction meets various regulatory standards, including UL 1059 and IEC 60664-1, ensuring reliable performance in electrical applications. Rated voltage specifications vary by usage group, supporting up to 600 V, while the rated current is up to 35 A depending on the application.

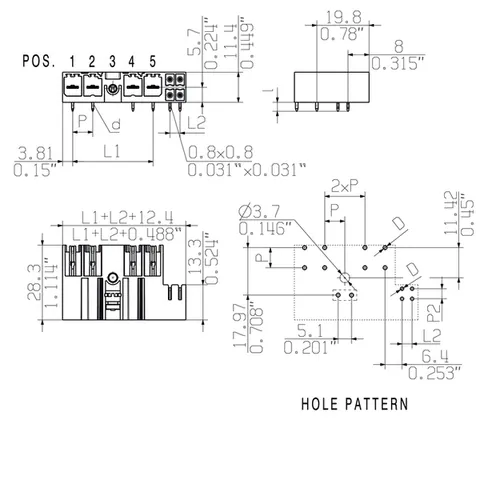

Dimensions include a height of 14.9 mm and a depth of 28.3 mm, and it has a net weight of 5.01 g. The insulating material is PA GF with a black color, while the contact material is a copper alloy, ensuring a high level of conductivity. The connector operates effectively within a temperature range of -50 °C to 130 °C, making it suitable for diverse environmental conditions.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group C / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 35 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1089890000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
