Weidmuller 1092900150

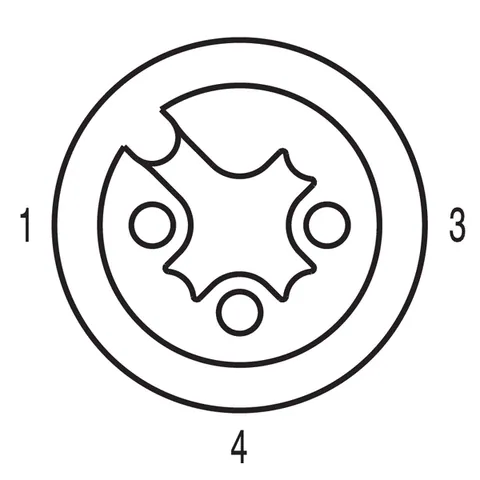

The M12 sensor/actuator line, designated as SAIL-M12BG-2/4-1.5UGE, is designed for versatile connectivity and durability. It features a female socket configuration with a straight design and a robust cable length of 1.5 m. This product operates within a temperature range of -25 to +80 °C, ensuring reliability in various environments.

With a net weight of 50 g, it adheres to the IEC 61076-2-101 connector standard, providing a protection degree of IP65, IP66, IP67, and IP68 when securely connected. The product supports a rated voltage of 250 V and a rated current of 4 A, with gold-plated contact surfaces enhancing conductivity.

The cable is constructed with a core cross-section of 0.34 mm² and an outside diameter of 4.3 ± 0.2 mm. The sheath material is PUR, which is resistant to hydrolysis and microbes, while also being free from halogens. The cable design allows for a minimum bending radius of 5 times the cable diameter when stationary and 10 times when in motion, with the capability to endure up to 5 million bending cycles.

Additionally, the M12 connector is equipped with a brass, nickel-plated threaded ring. The assembly is rated for a maximum operating temperature of 80 °C and a minimum of -25 °C, making it suitable for diverse applications. Compliance with various standards, including CULUS and ROHS, ensures its reliability in industrial settings.
