Weidmuller 1093020150

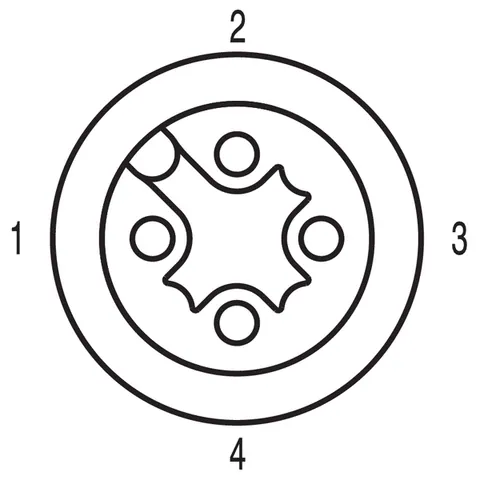

M12 Connector Cable SAIL-M12GM12G-4-1.5UGE
Product Description
The SAIL-M12GM12G-4-1.5UGE is an M12 connector cable equipped with a 4-pole configuration and a length of 1.5 meters. It employs a pin to socket design and supports a connection standard in compliance with IEC 61076-2-101. The housing is constructed from PUR, while the threaded ring is made of nickel-plated brass.
This cable operates within a temperature range of -25°C to +80°C and is rated for a voltage of 250V and a current of 4A. Its contact surface is gold-plated, ensuring optimal conductivity. The cable has an outside diameter of 4.7 mm and is not shielded. The core cross-section measures 0.34 mm² and features color coding in brown, white, blue, and black.
With a protection degree of IP65, IP66, IP67, and IP68 when properly installed, this cable is suitable for various industrial applications requiring durability and flexibility. It withstands bending cycles of up to 5 million and is resistant to hydrolysis and microbes, as well as oils, in compliance with IEC standards.
The cable is classified under ETIM 6.0 EC001855 and EClass 9.0 27-06-03-11, ensuring it meets industry standards for environmental compliance.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E307231
- Connector standard
- IEC 61076-2-101
- Certificate no. (cULus)
- E307231
- AF size
- 12 mm
