Weidmuller 1093050300

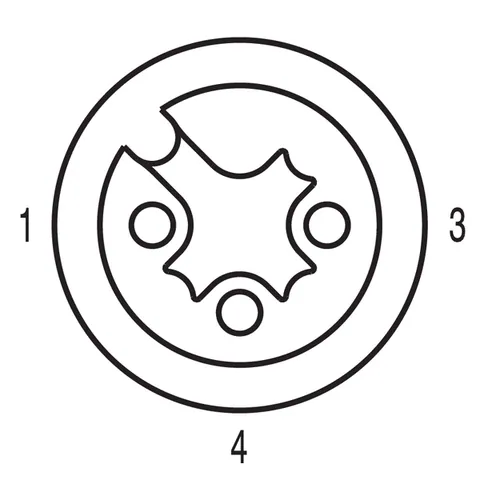

This connecting line features M12 connectors on both ends, designed with 3 poles and a length of 3 meters. The configuration includes a straight socket and a 90° angle, with a connector standard compliant to IEC 61076-2-101, ensuring reliable performance in various applications.

The housing is constructed from PUR material, and the threaded ring is made of brass with a nickel-plated finish. It supports a rated voltage of 250 V and a rated current of 4 A. The connection is IP65, IP66, IP67, and IP68 rated when properly secured, providing a high level of protection against environmental factors.

With a temperature range of -25°C to +80°C, this cable is suitable for a variety of settings. It contains a core cross-section of 0.34 mm² and an outside diameter of 4.3 mm. The cable is unshielded and features color coding of brown, blue, and black. The sheath is yellow in color and compliant with various standards, including UL AWM styles.

Designed for durability, the cable can withstand bending cycles of up to 5 million and has a minimum bending radius of 5 times the cable diameter for stationary use and 10 times for moving applications. Additionally, it is resistant to hydrolysis, microbes, and oils, making it a suitable choice for a range of industrial environments.
