Weidmuller 1093260300
SAIL-ZW-M8BW-3-3.0UGE
Product Description

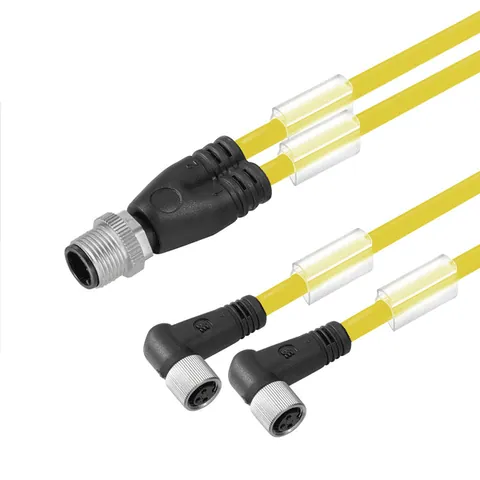

This sensor/actuator connecting line is designed for use with M12 and M8 connectors, featuring a configuration of 3 poles and a length of 3 meters. The line incorporates twin cabling with a straight pin layout, terminated with two angled sockets. The use of PUR as the sheath material ensures durability, while the lack of shielding and LED indicators simplifies the design.
According to the IEC 61076-2-101 and IEC 61076-2-104 standards, this cable adheres to strict connector specifications. It supports a rated voltage of 60 V and a rated current of 4 A. The gold-plated contact surfaces enhance conductivity and reliability.
With an operating temperature range from -25 °C to +80 °C, this line is suitable for various environments, maintaining performance across a temperature spectrum. The cable's outer diameter is 4.1 mm with a core cross-section of 0.25 mm², featuring a yellow PUR sheath that is resistant to oils and hydrolysis. This makes it ideal for applications requiring high flexibility and resistance to mechanical stress.
In addition, the cable is designed with a minimum bending radius of 5 times its diameter when stationary and 10 times when in motion, allowing for effective routing in constrained spaces. The product is compliant with EAC and ROHS standards, ensuring environmental safety.
Need more information?
Offer details
- Offer from:
Trusted supplier — Czechia, member since 2023, 100–499 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Approvals
- EAC
- ROHS
- Conform
- Connector standard
- IEC 61076-2-101, IEC 61076-2-104
- AF size
- 12 mm
- Version
- Twin cabling, pin, straight, 2x socket, angled
- Connection thread
- M12 / M8
Available Offers
(5)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierCzechiaTrusted supplier — member since 2023, 100–499 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier PolandTrusted supplier — member since 2021, 50–99 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier LatviaTrusted supplier — member since 2024, 20–49 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier GermanyTrusted supplier — member since 2023, 5–9 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1093260300, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 24-04-2025
